Pneumatic Strapping Machine

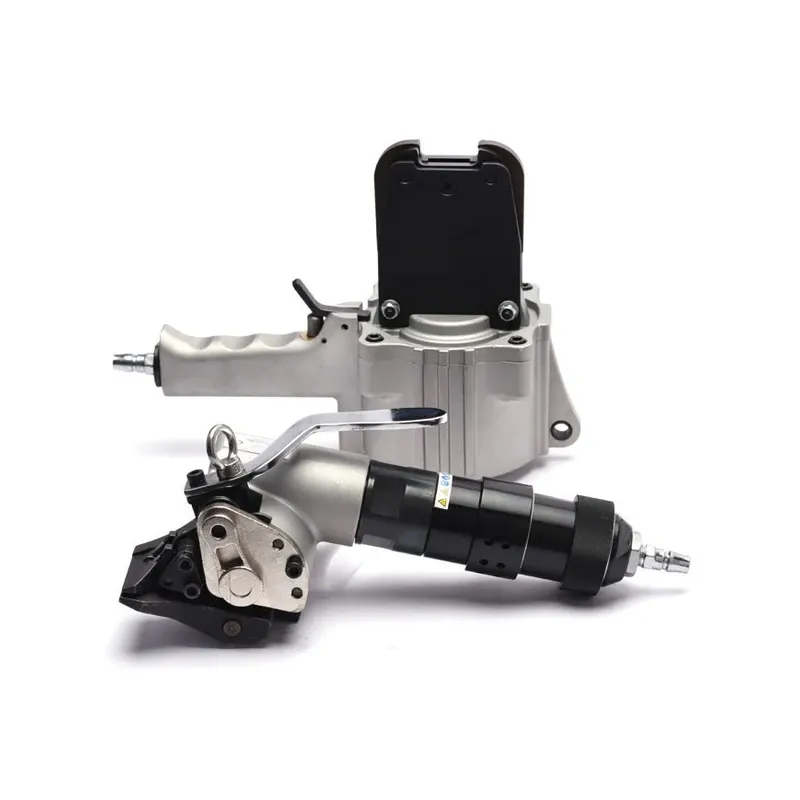

Split Type Pneumatic Steel Strapping Tool FTL-S19/S25/S32
Split Type Pneumatic Steel Strapping Tool FTL-S19/S25/S32 is a pneumatic powered strapping tool in the RDK series. Key specifications: Colour Silver; Apply strap Steel belt / iron belt; Specification 19-32; Strap thickness 0.6-1.2. OEM & ODM customization available.
Specifications
- Colour
- Silver
- Apply strap
- Steel belt / iron belt
- Specification (mm)
- 19-32
- Strap thickness (mm)
- 0.6-1.2
- Pull (KN)
- >= 8.5
- Tightening speed (cm/s)
- >= 7.5
- Withstand tension (KN)
- 15
- Using air pressure (MPa)
- 0.49-0.63
- Dimensions (mm)
- L375*H260*W175
- Weight (kg)
- 4.1 + 3.1
Split Type Pneumatic Steel Strapping Tool FTL-S19/S25/S32 is a pneumatic powered strapping tool in the RDK series. Key specifications: Colour Silver; Apply strap Steel belt / iron belt; Specification 19-32; Strap thickness 0.6-1.2. OEM & ODM customization available.
Key Features
Colour: Silver
Apply strap: Steel belt / iron belt
Specification (mm): 19-32
Strap thickness (mm): 0.6-1.2
Technical Specifications
Parameter | Specification |
|---|---|
Colour | Silver |
Apply strap | Steel belt / iron belt |
Specification (mm) | 19-32 |
Strap thickness (mm) | 0.6-1.2 |
Pull (KN) | >= 8.5 |
Tightening speed (cm/s) | >= 7.5 |
Withstand tension (KN) | 15 |
Using air pressure (MPa) | 0.49-0.63 |
Dimensions (mm) | L375*H260*W175 |
Weight (kg) | 4.1 + 3.1 |
OEM / ODM
Customized configurations are available according to customer requirements, including frame size, table height and strap specifications.
