Electric Strapping MachineElectric Strapping Machine

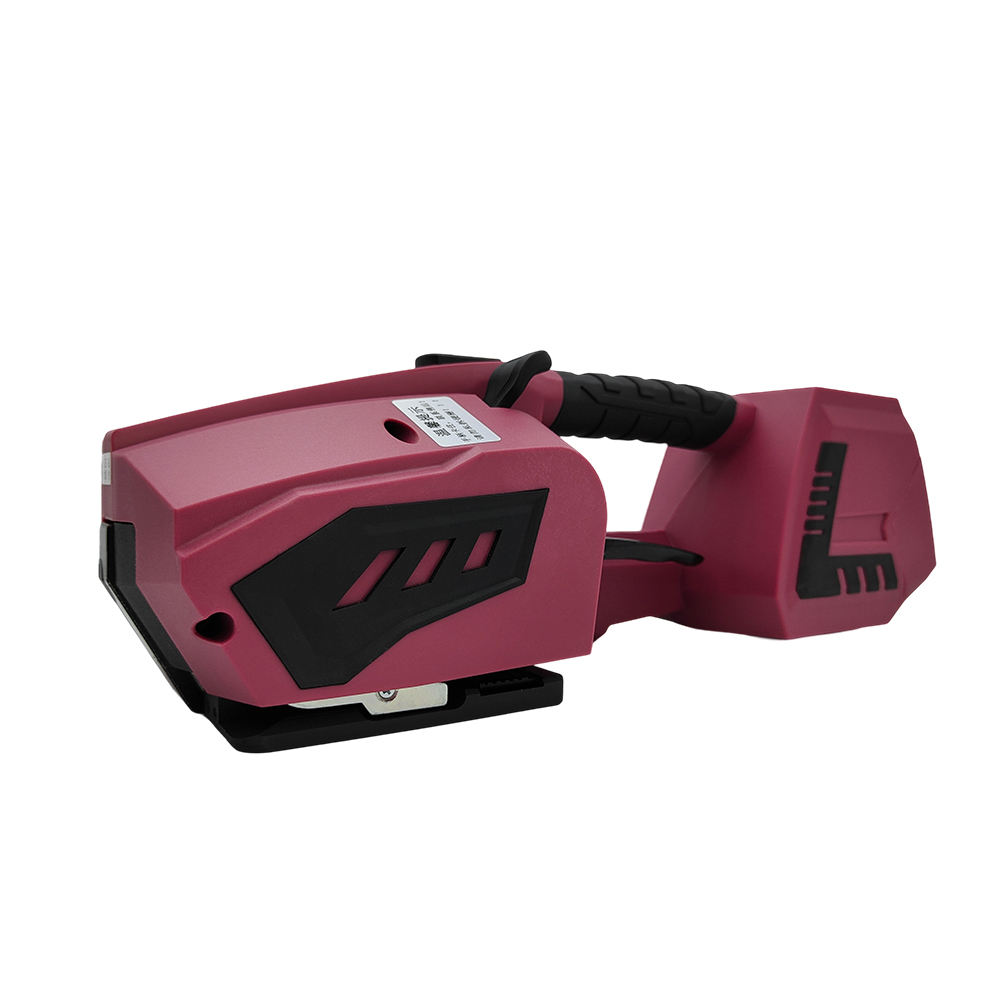

Fully Automatic Handheld Electric Strapping Machine
·【Cordless & Portable】：KJD16 electric strapping machine weighs only 3.7 kg, measures 400×140×130 mm, and is equipped with a built-in high-capacity lithium battery of 4000 mAh / 14.4 V
·【Friction Fusion Welding】：Utilizing friction welding technology, there is no need for preheating, resulting in a strong and visually appealing joint
·【High‑Reliability】：Semi-automatic, electric drive, durable and sturdy core components, robust structure, providing one-year warranty and online technical support services
Technical Specifications
Product Highlights

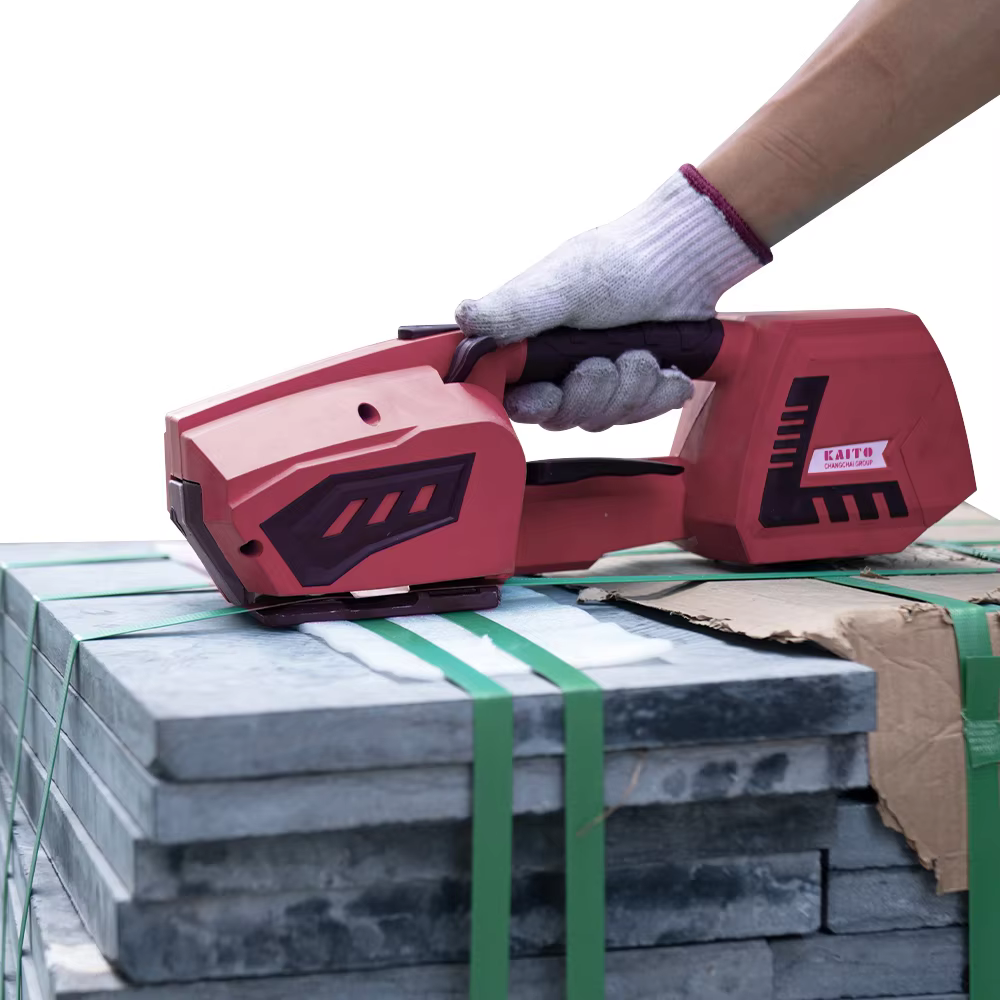

·Cordless & Portable – Large Battery Capacity with Fast Charging：The KJD16 weighs only 3.7 kg and measures 400×140×130 mm. It is powered by a 4000 mAh / 14.4 V lithium battery, allowing extended cordless operation. Charging time is just 90 minutes – a quick top‑up during a lunch break or shift change. The semi‑automatic design frees you from power cords and air hoses, so you can move freely to any work area: warehouse, truck, or outdoor yard. It supports 110V‑230V wide voltage charging, suitable for global power grids.
·Friction Fusion Welding – No Preheating, Strong & Clean Joints：This model uses Friction Fusion Welding, which differs from standard hot welding. High‑frequency vibration generates friction heat to melt and bond the strap layers – no heating element, no warm‑up time. Just start and strap immediately. The welded joint is strong, flat, and burr‑free, and the process is unaffected by ambient temperature (hot welding may be slower in cold conditions). With a strapping speed of 6 seconds per bundle, it greatly improves one‑operator productivity. No metal clips are needed, reducing consumable costs.

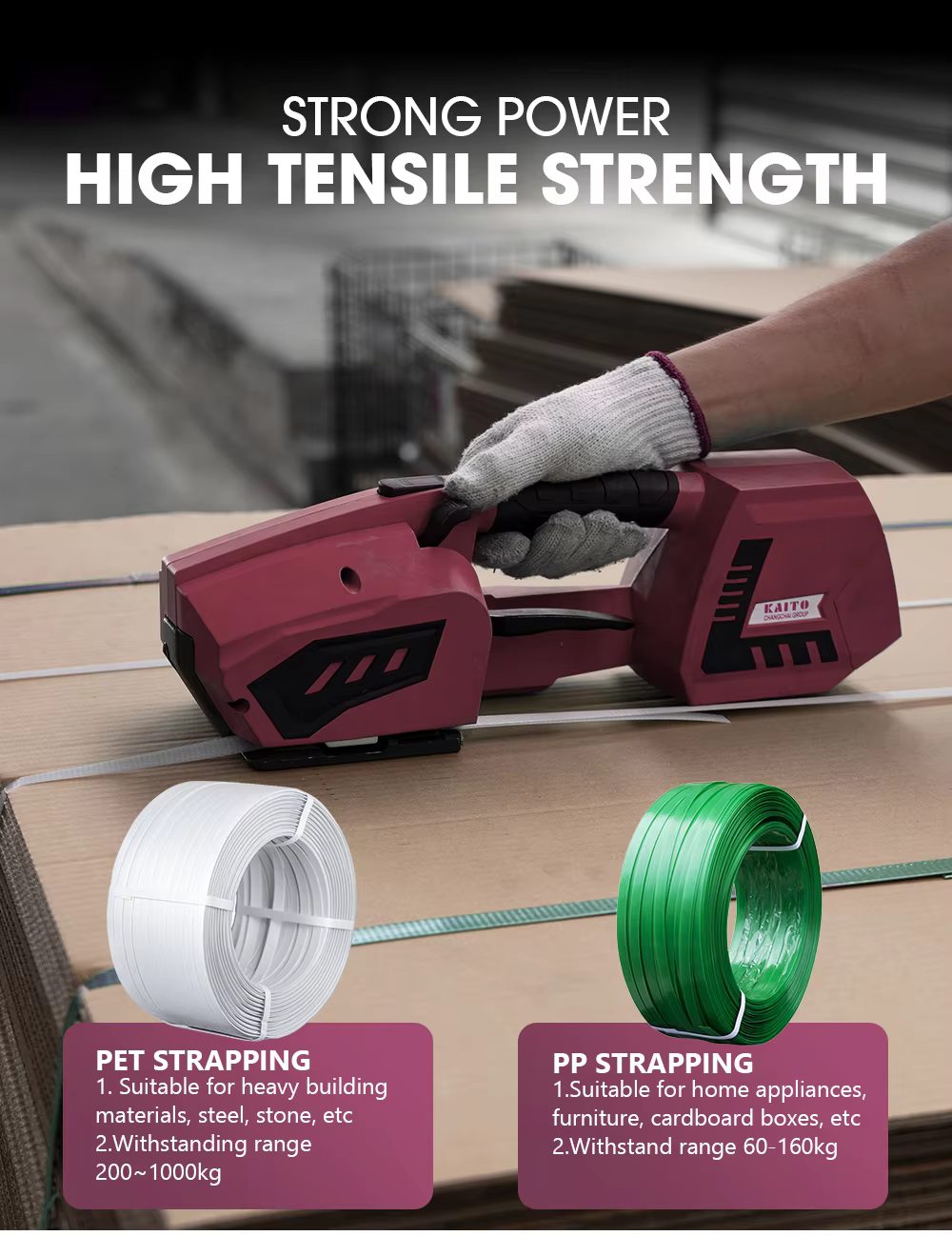

·Wide Tension Range + Fast Strapping – Adapts to Light & Heavy Loads：Tension is infinitely adjustable from 0 to 4500 N – from light cartons to heavy industrial boxes, you can set the exact tension to avoid product damage or loose bundles. Strapping speed is 6 seconds per bundle (faster than the previous V2 model at 8 seconds), achieving about 600 cycles per hour. The semi‑automatic mode (manual strap feeding, then machine‑powered tension + weld + cut) offers human flexibility while greatly reducing physical effort. It works with PP strap / PET strap; width 8–16 mm, thickness 0.4–1.2 mm – one machine for multiple strap sizes.
·High reliability and durability：The core components include bearings, engines, and gears, featuring a sturdy structure specifically designed for frequent movement and repeated tensioning actions in semi-automatic operations. The equipment is driven electrically. Before leaving the factory, each unit is provided with a mechanical test report and video inspection to ensure that its performance meets standards. Customers enjoy a 1-year warranty and online technical support. Whether it's a high-intensity warehouse that packs hundreds of times daily or an intermittently used retail store, it can maintain stable performance.
