Tray Packaging Machinepallet wrapping machine

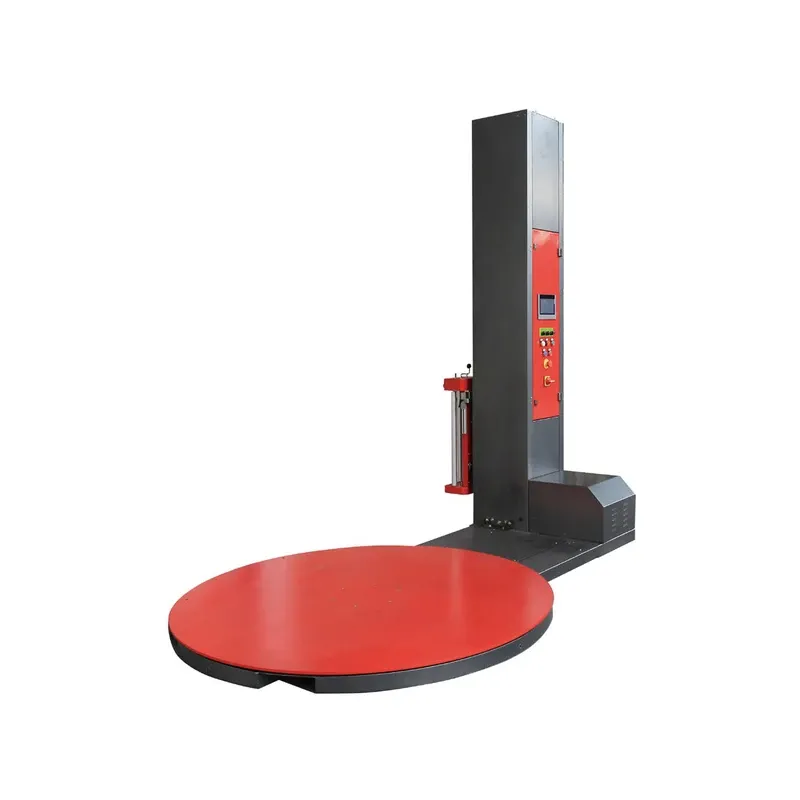

Fully-Automatic-Pallet-Stretch-Wrapper
·【Easy To Operate】：One-click packaging mode, with PLC automatically controlling the entire wrapping process, saving both time and effort
·【Multifunctional】：Ultra-wide application range, flexible adaptation to different industries
·【High Productivity】：With its strong load-bearing capacity, stable start-stop performance, and high efficiency, it easily handles heavy pallets or high-density shipping scenarios.
·【Reliable and durable】：Long service life, high rigidity, and comprehensive after-sales service provided
Technical Specifications
| |
| 2620*1650*2235mm(103.15*64.96*87.99in) |
| |
| Maximum load capacity 2000kg |
| 0-13 rpm, frequency conversion speed control |
| |
| 2200mm/2500mm/3000mm(customisable) |
| 1650mm/1800mm/2000mm(customisable) |
Membrane frame lifting speed | |
| |
Membrane discharge method | |
Product Highlights

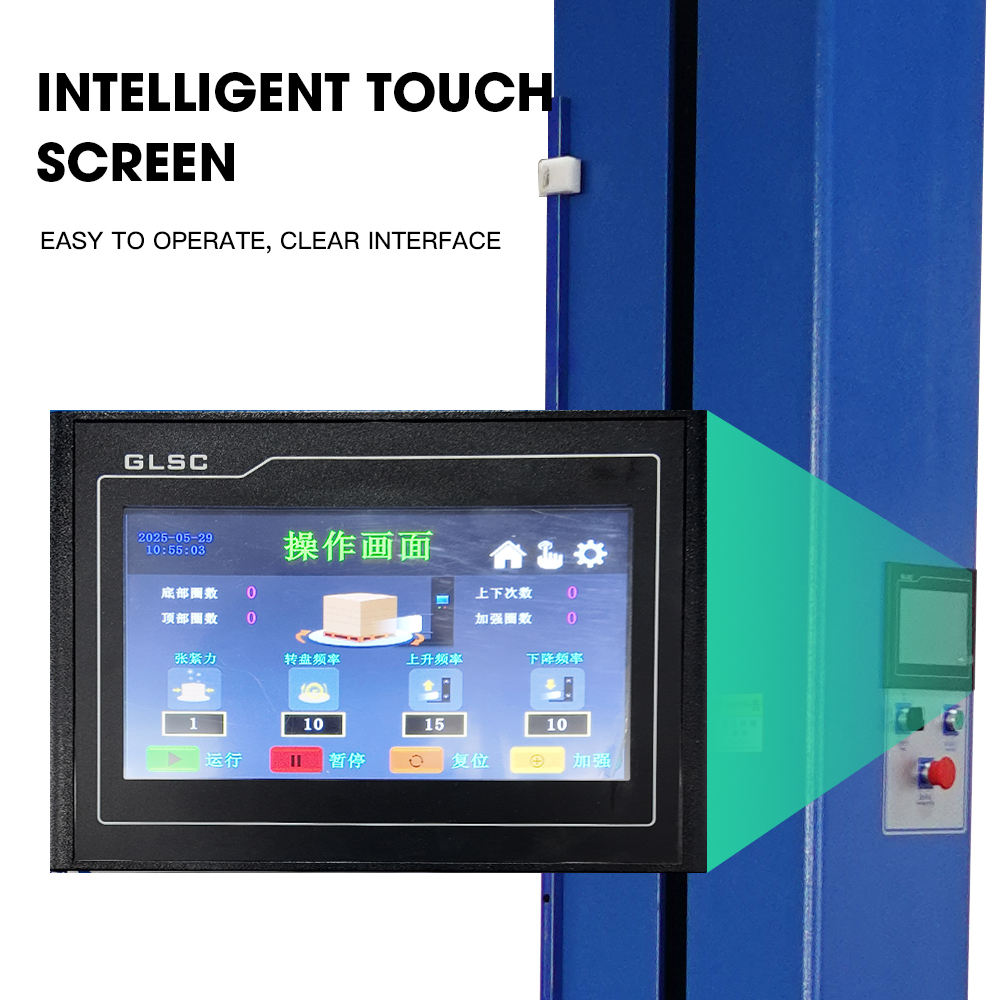

·Easy to operate and cost-effective:One-button packaging mode, equipped with PLC automatic control - simply press the start button, and the machine can automatically complete the entire packaging process. The PLC controller and frequency converter can smoothly adjust the turntable speed (0-13 rpm, with soft start and soft stop) to prevent load collapse. The film carrier lifting speed is 0-5 m/min, and the pre-stretching film system ensures uniform tension. Accurate film stretching and dosage control avoid film waste that may occur during manual packaging, eliminating the need for manual intervention. No training required - saving time and manpower.
·Wide application range：This machine can flexibly adapt to multiple industries: food, beverage, chemical, mechanical hardware, clothing, and textile. It can use plastic or paper packaging materials to package cartons, cans, bottles, boxes, etc. The height of the column can be customized (2200/2500/3000 mm), and the diameter of the turntable can also be customized (1650/1800/2000 mm) to accommodate trays of different sizes. Whether you need to package tall chemical barrels or short beverage cartons, one machine can meet all your needs.

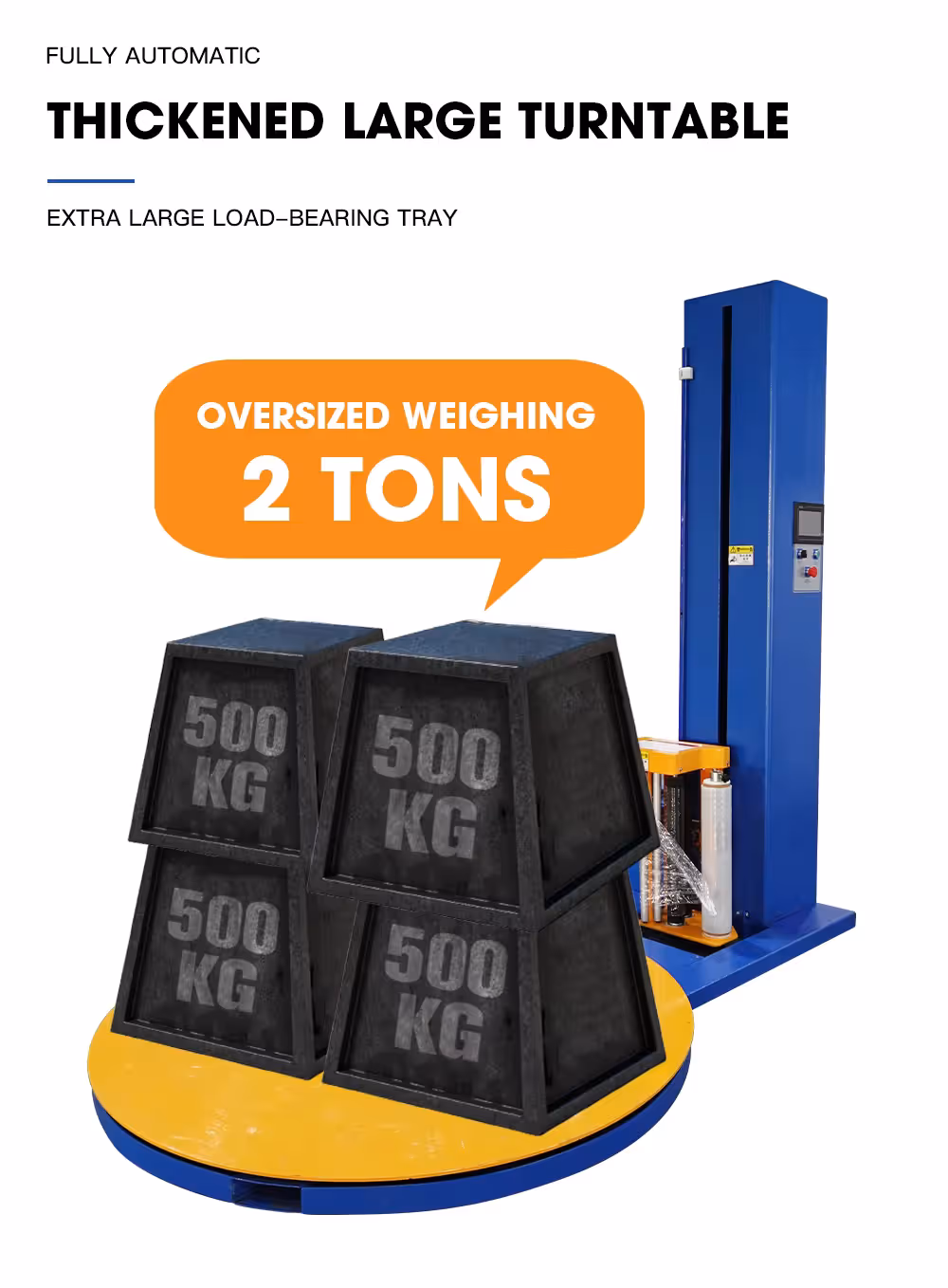

·High-performance：Industrial-grade large-tonnage weighing trays are specifically designed for heavy machinery, construction materials, and bulk goods, with a maximum load capacity of 2 tons. They meet the weighing needs in warehousing, logistics, manufacturing, and other industries.. With a packaging speed of up to 20-40 pallets per hour, it is highly suitable for medium to high-density transportation scenarios.

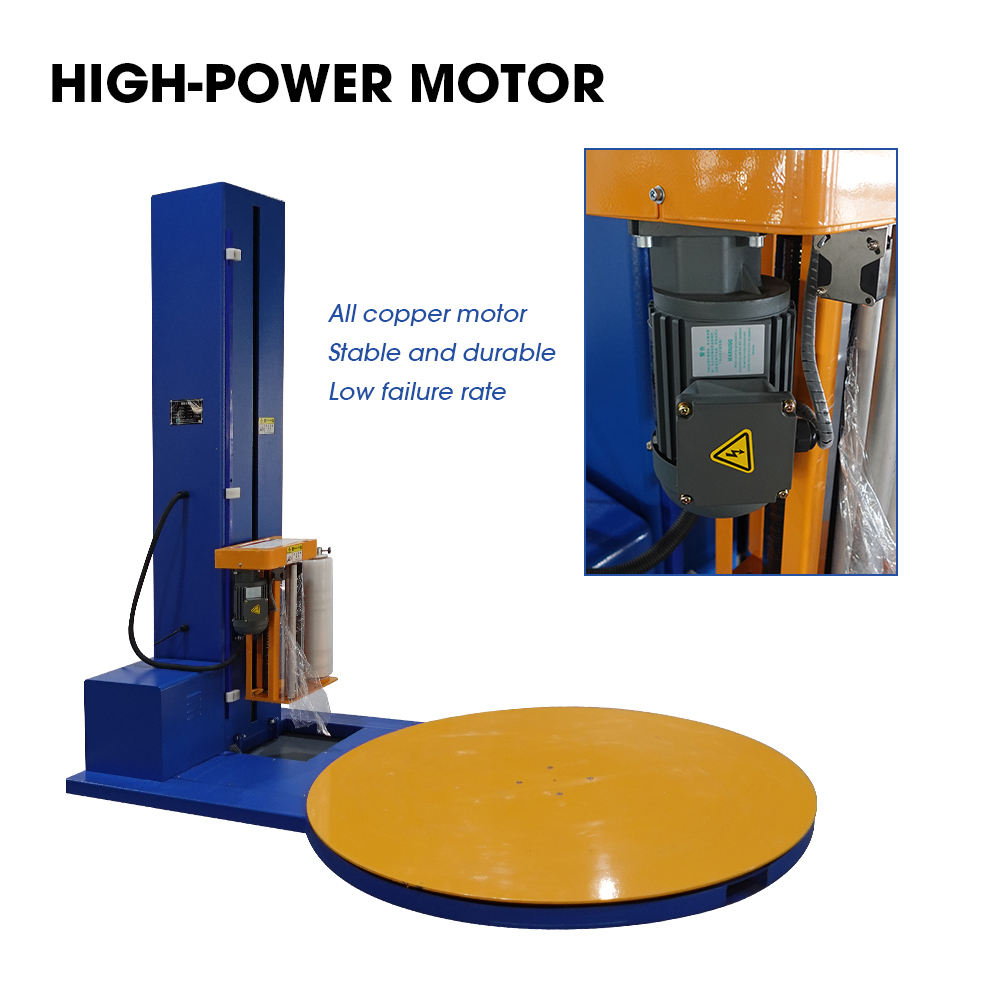

·Reliable and Durable：Long service life, high rigidity, and comprehensive after‑sales service – built with a 510 kg robust steel frame (dimensions: 2620×1650×2235 mm), the machine withstands heavy daily use. Core components include PLC, motor, and engine from reliable suppliers. Voltage: 220V, automatic electric drive. Every unit comes with a mechanical test report and factory video inspection. Backed by a 1‑year warranty and online technical support, you get peace of mind and quick troubleshooting.
