Pallet Strapping System

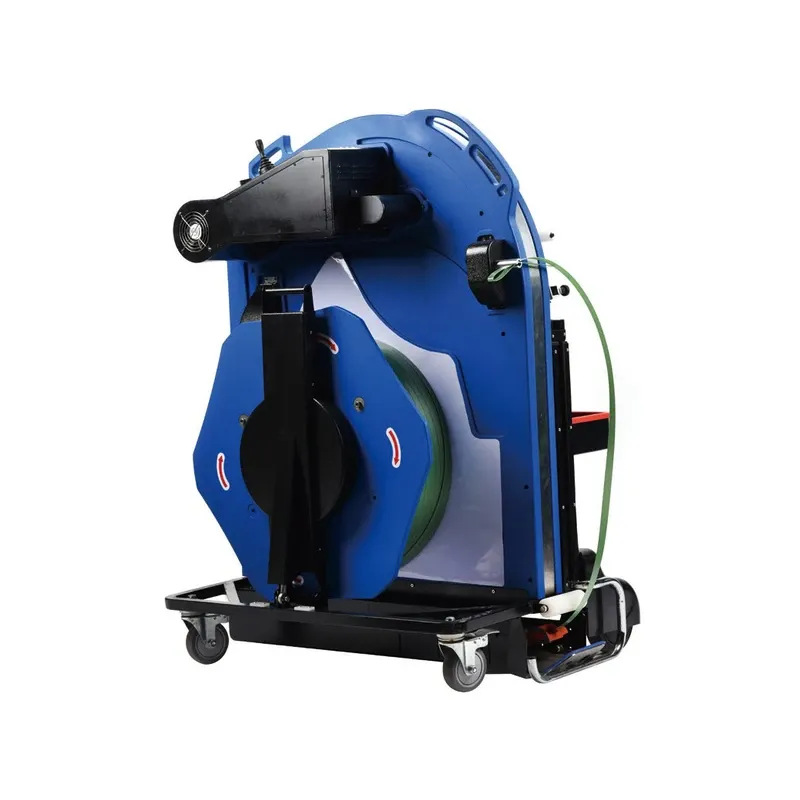

Ergonomic Pallet Strapping Machine JD-008
Ergonomic Pallet Strapping Machine JD-008 is a ergonomic pallet strapping systems in the RDK series. Key specifications: Working voltage DC23.6-DC33.6V; Machine dimension L950*W750*H1250; Weight (kg) 100; Chain length 9300. OEM & ODM customization available.
Specifications
- Working voltage
- DC23.6-DC33.6V
- Machine dimension (mm)
- L950*W750*H1250
- Weight (kg)
- 100
- Chain length (mm)
- 9300
- Packing specifications (mm)
- W < 2000, H < 3000
- Applicable products
- PP/PET strap
- Dia. of mandrel (mm)
- Mandrel dia. 200 / 406
- Strap specifications (mm)
- Width 12-19, thickness 0.6-1.3
- Clearance (mm)
- Height 75, minimum width 200
- Speed (m/min)
- Horizontal 40, vertical 60
- Endurance
- Charged 2.5 hours, 600 pcs available
Ergonomic Pallet Strapping Machine JD-008 is a ergonomic pallet strapping systems in the RDK series. Key specifications: Working voltage DC23.6-DC33.6V; Machine dimension L950*W750*H1250; Weight (kg) 100; Chain length 9300. OEM & ODM customization available.
Key Features
Working voltage: DC23.6-DC33.6V
Machine dimension (mm): L950*W750*H1250
Weight (kg): 100
Chain length (mm): 9300
Technical Specifications
Parameter | Specification |
|---|---|
Working voltage | DC23.6-DC33.6V |
Machine dimension (mm) | L950*W750*H1250 |
Weight (kg) | 100 |
Chain length (mm) | 9300 |
Packing specifications (mm) | W < 2000, H < 3000 |
Applicable products | PP/PET strap |
Dia. of mandrel (mm) | Mandrel dia. 200 / 406 |
Strap specifications (mm) | Width 12-19, thickness 0.6-1.3 |
Clearance (mm) | Height 75, minimum width 200 |
Speed (m/min) | Horizontal 40, vertical 60 |
Endurance | Charged 2.5 hours, 600 pcs available |
OEM / ODM
Customized configurations are available according to customer requirements, including frame size, table height and strap specifications.
