Pillow Packing Machine

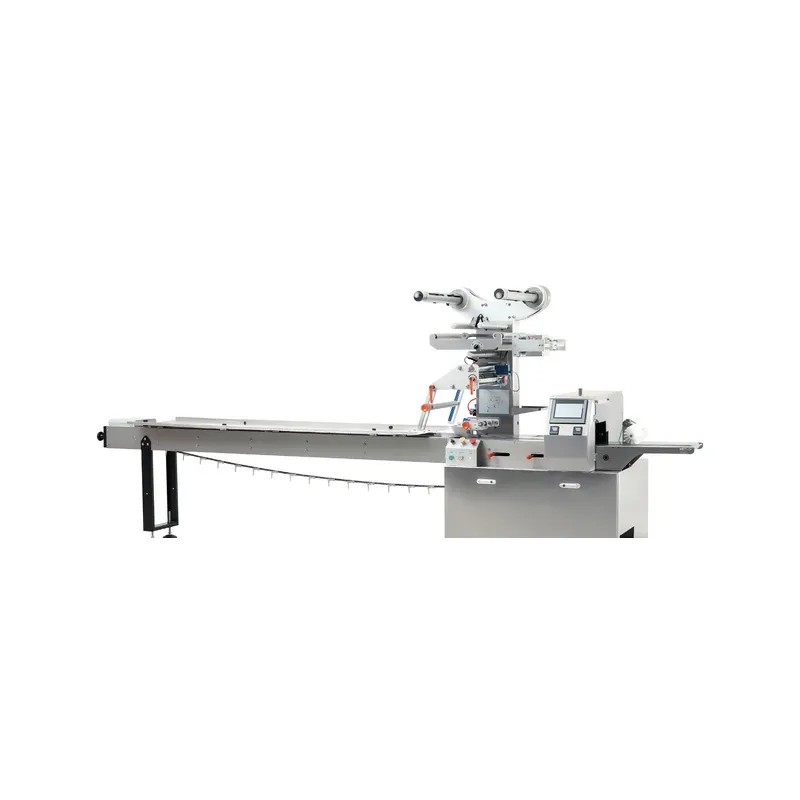

Pillow Packing Machine KFW-323B (Xiaosong)
Pillow Packing Machine KFW-323B (Xiaosong) is a pillow packing machine in the RDK series. OEM & ODM customization available.
Specifications
- General power (kW)
- 5 | 6.5
- Bag length (mm)
- 80-500 | 80-500
- Bag width (mm)
- 60-160 | 60-160
- Bag height (mm)
- 5-50 | 5-40
- Packing film width (mm)
- 80-370 | 80-370
- Packing speed (bags/min)
- 30-150 | 30-300
- Weight (kg)
- 450 | 450
- Machine dimension (L*W*H)
- 1,500*950*1,750 | 1,500*950*1,750
- Power supply
- 1AC 220V 50Hz | 1AC 220V 50Hz
- Film material
- OPP/PVC/CPP/PTFE/KOP/CPP (aluminum film) etc. | OPP/PVC/CPP/PTFE/KOP/CPP (aluminum film) etc.
Pillow Packing Machine KFW-323B (Xiaosong) is a pillow packing machine in the RDK series. OEM & ODM customization available.
Applications
It's suitable for biscuit, cookie, snow cake, chocolate, candy, moon cake, green bean biscuit, peach crisps, custards, pastries, drug, daily necessities, hardware parts, and other kinds of solid, regularly shaped items package.
Key Features
Horizontal sealing, middle sealing and machine tailstock (bracket) also use the independent servo motor for controlling, brief mechanism structure, smooth working.
High speed & high precision.
Control system uses the touch screen display, good human-computer interface, easily, intuitively, conveniently controlling.
Stainless steel frame with automatic film connection assortment.
Technical Specifications
Parameter | Specification |
|---|---|
General power (kW) | 5 | 6.5 |
Bag length (mm) | 80-500 | 80-500 |
Bag width (mm) | 60-160 | 60-160 |
Bag height (mm) | 5-50 | 5-40 |
Packing film width (mm) | 80-370 | 80-370 |
Packing speed (bags/min) | 30-150 | 30-300 |
Weight (kg) | 450 | 450 |
Machine dimension (L*W*H) | 1,500*950*1,750 | 1,500*950*1,750 |
Power supply | 1AC 220V 50Hz | 1AC 220V 50Hz |
Film material | OPP/PVC/CPP/PTFE/KOP/CPP (aluminum film) etc. | OPP/PVC/CPP/PTFE/KOP/CPP (aluminum film) etc. |
OEM / ODM
Customized configurations are available according to customer requirements, including frame size, table height and strap specifications.
