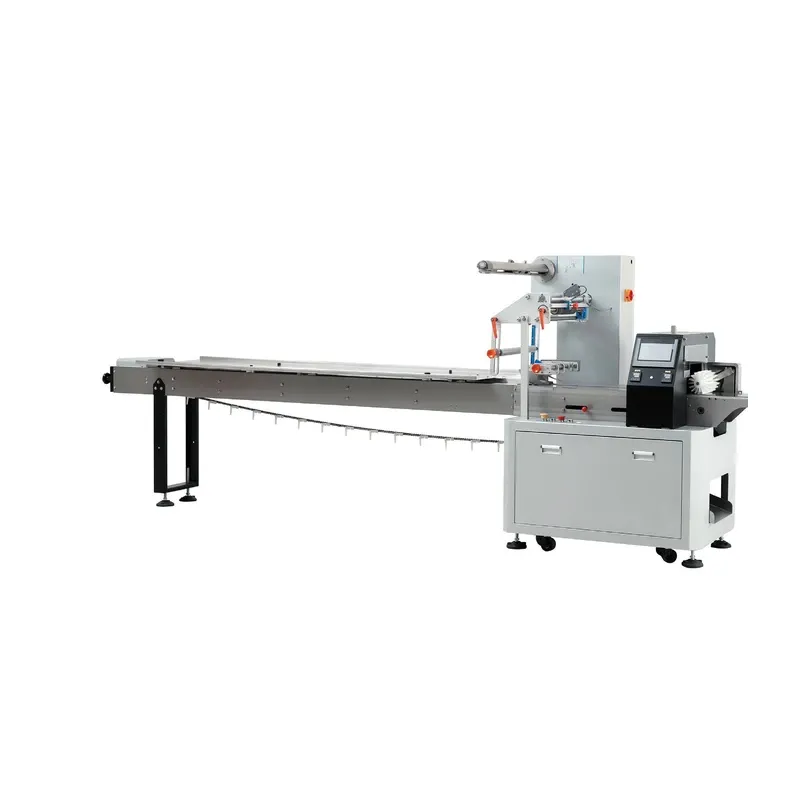

Pillow Packing Machine KFW-323C (Xiaochuan)
Pillow Packing Machine

Pillow Packing Machine KFW-323C (Xiaochuan)

Pillow Packing Machine KFW-323C (Xiaochuan) is a pillow packing machine in the RDK series. OEM & ODM customization available.

Specifications

General power (kW)
4.5 | 6
Bag length (mm)
80-500 | 80-500
Bag width (mm)
60-160 | 60-160
Bag height (mm)
5-50 | 5-40
Packing film width (mm)
80-370 | 80-370
Packing speed (bags/min)
30-150 | 30-250
Weight (kg)
450 | 450
Machine dimension (L*W*H)
1,450*950*1,650 | 1,450*950*1,650
Power supply
1AC 220V 50Hz | 1AC 220V 50Hz
Film material
OPP/PVC/CPP/PTFE/KOP/CPP (aluminum film) etc. | OPP/PVC/CPP/PTFE/KOP/CPP (aluminum film) etc.
Pillow Packing Machine KFW-323C (Xiaochuan) is a pillow packing machine in the RDK series. OEM & ODM customization available.
Applications
It's suitable for biscuit, cookie, snow cake, chocolate, candy, moon cake, green bean biscuit, peach crisps, custards, pastries, drug, daily necessities, hardware parts, and other kinds of solid, regularly shaped items package.
Key Features
Horizontal sealing, middle sealing and machine tailstock (bracket) also use the independent servo motor for controlling, brief mechanism structure, smooth working.
High speed & high precision.
Control system uses the touch screen display, good human-computer interface, easily, intuitively, conveniently controlling.
Technical Specifications
Parameter
Specification
General power (kW)
4.5 | 6
Bag length (mm)
80-500 | 80-500
Bag width (mm)
60-160 | 60-160
Bag height (mm)
5-50 | 5-40
Packing film width (mm)
80-370 | 80-370
Packing speed (bags/min)
30-150 | 30-250
Weight (kg)
450 | 450
Machine dimension (L*W*H)
1,450*950*1,650 | 1,450*950*1,650
Power supply
1AC 220V 50Hz | 1AC 220V 50Hz
Film material
OPP/PVC/CPP/PTFE/KOP/CPP (aluminum film) etc. | OPP/PVC/CPP/PTFE/KOP/CPP (aluminum film) etc.
OEM / ODM
Customized configurations are available according to customer requirements, including frame size, table height and strap specifications.
