Pillow Packing Machine

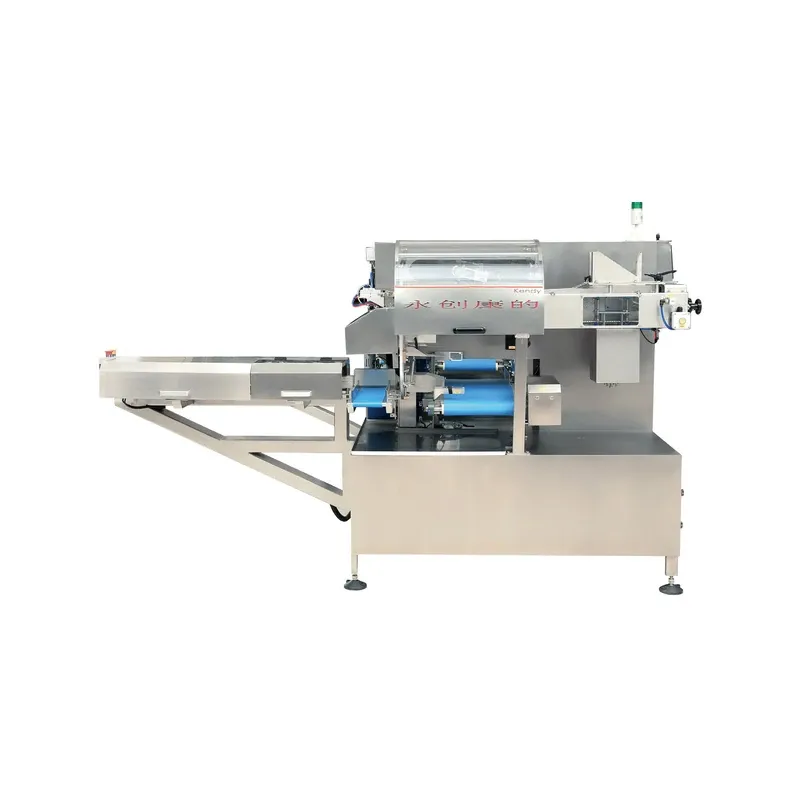

Middle Bagging Machine KMP-100
Middle Bagging Machine KMP-100 is a pillow packing machine in the RDK series. Key specifications: General power (kW) 4 or less; Power source 220V 50Hz; Material length range 60-120; Material width range 60-100. OEM & ODM customization available.
Specifications
- General power (kW)
- 4 or less
- Power source
- 220V 50Hz
- Material length range (mm)
- 60-120
- Material width range (mm)
- 60-100
- Material height range (mm)
- 30-70, 70-90
- Bag maximum range (mm)
- 160 <= length <= 260, 60 <= width <= 120
- Bag type
- Precast bag
- Packing speed (bags/min)
- 40-45
- Weight (kg)
- 600
- Machine dimension (C*W*H)
- 2,700*1,100*1,500
Middle Bagging Machine KMP-100 is a pillow packing machine in the RDK series. Key specifications: General power (kW) 4 or less; Power source 220V 50Hz; Material length range 60-120; Material width range 60-100. OEM & ODM customization available.
Applications
It's suitable for cake, toast, strip bread, multilayer wafer, rice crackers etc. which are fit the range with regular shape.
Key Features
The whole operation is completed by the motion controller, with the advantages of high precision and high speed.
Multi-station servo control, simple structure, smooth operation, strong adaptability.
With big touch screen display, visible operation status, convenient for operation, cleaning, maintenance, overhaul and maintenance, reduce operation difficulty.
Technical Specifications
Parameter | Specification |
|---|---|
General power (kW) | 4 or less |
Power source | 220V 50Hz |
Material length range (mm) | 60-120 |
Material width range (mm) | 60-100 |
Material height range (mm) | 30-70, 70-90 |
Bag maximum range (mm) | 160 <= length <= 260, 60 <= width <= 120 |
Bag type | Precast bag |
Packing speed (bags/min) | 40-45 |
Weight (kg) | 600 |
Machine dimension (C*W*H) | 2,700*1,100*1,500 |
OEM / ODM
Customized configurations are available according to customer requirements, including frame size, table height and strap specifications.
