ProductsM-Type Stretch Wrapping Machine
photobank (77)
photobank (77)
photobank (76)
photobank (80)
photobank (78)
Pallet Stretch Wrapping Machinepallet wrapping machine

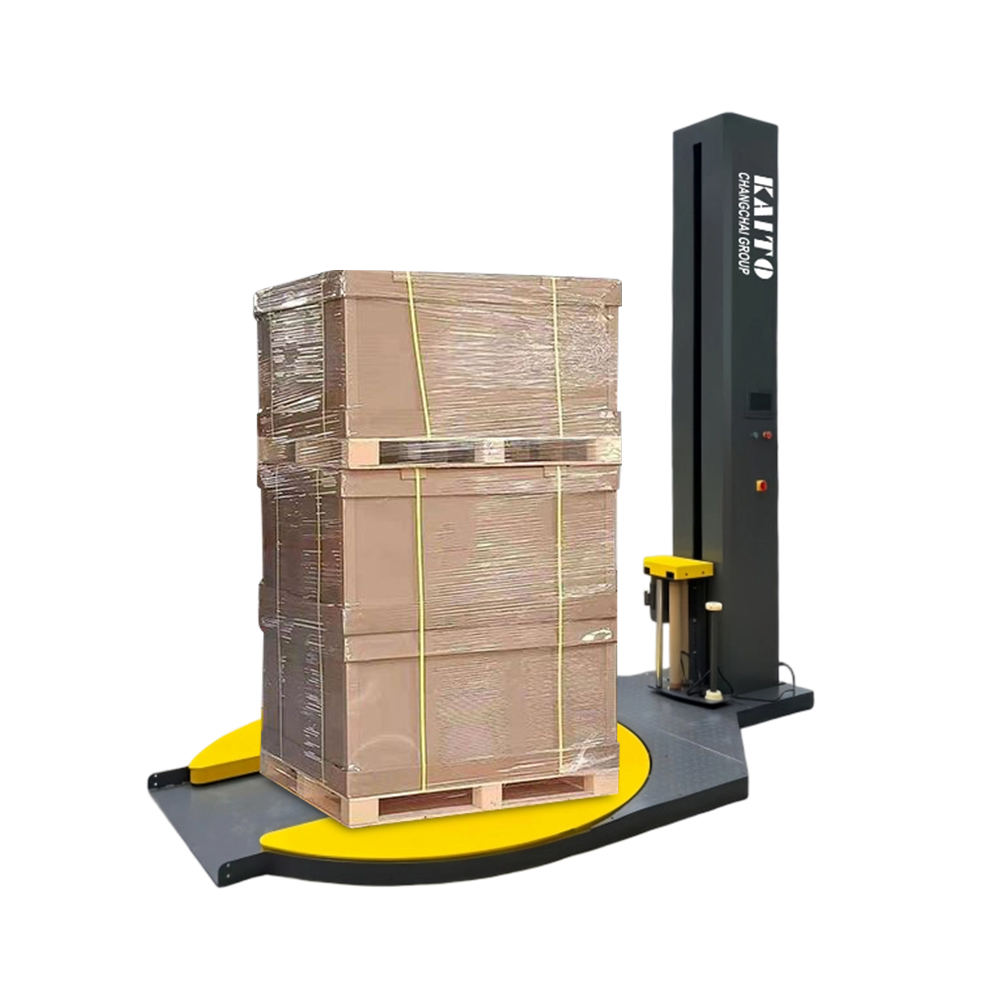

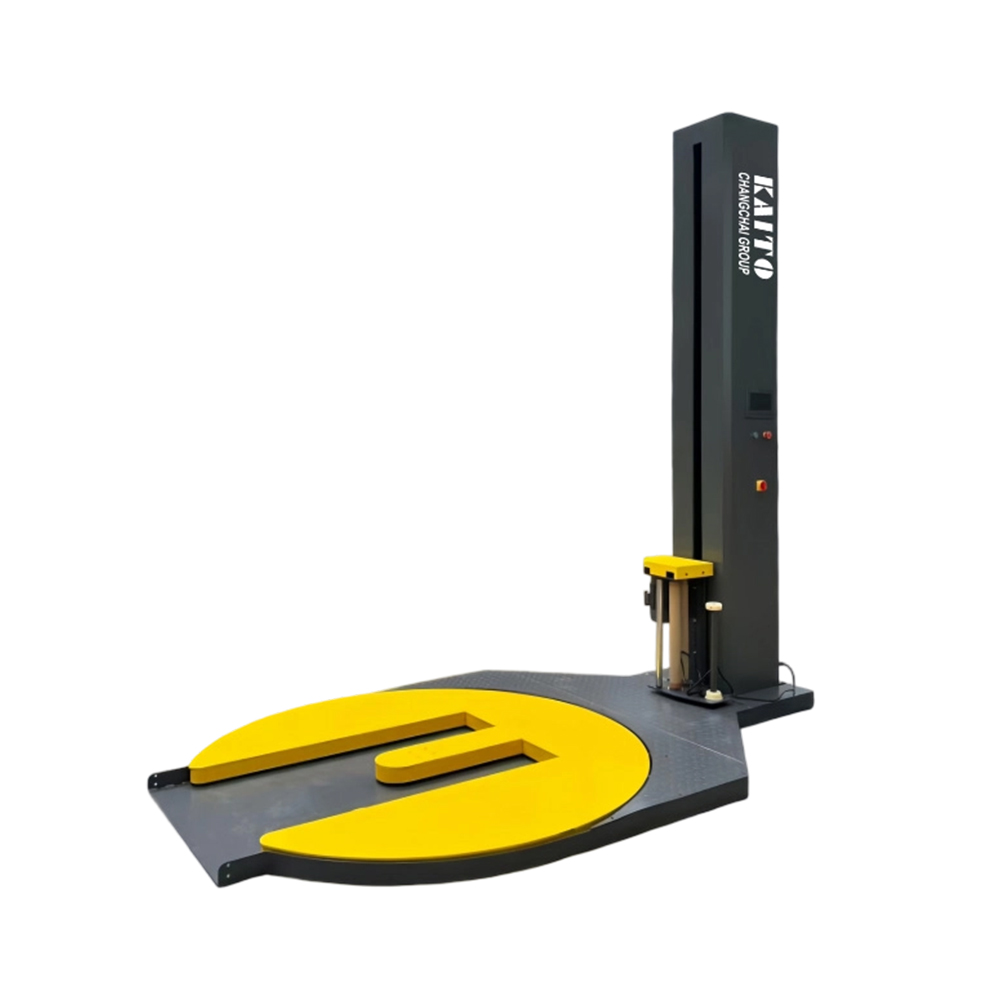

M-Type Stretch Wrapping Machine

 1. 20~40 pallets/h output, adjustable rotary & film lifting speed. 2. Max 1000kg load, fits most standard pallets. 3. PLC touch control, auto photo sensing, low M-type turntable for forklift entry. 4. 220V single phase, 1.35kW low wattage, no 3-phase electricity needed.

Contact Us
Product Specification
Product Name
M-Type Pallet Stretch Film Packer
Turntable load-bearing
1000kg Max

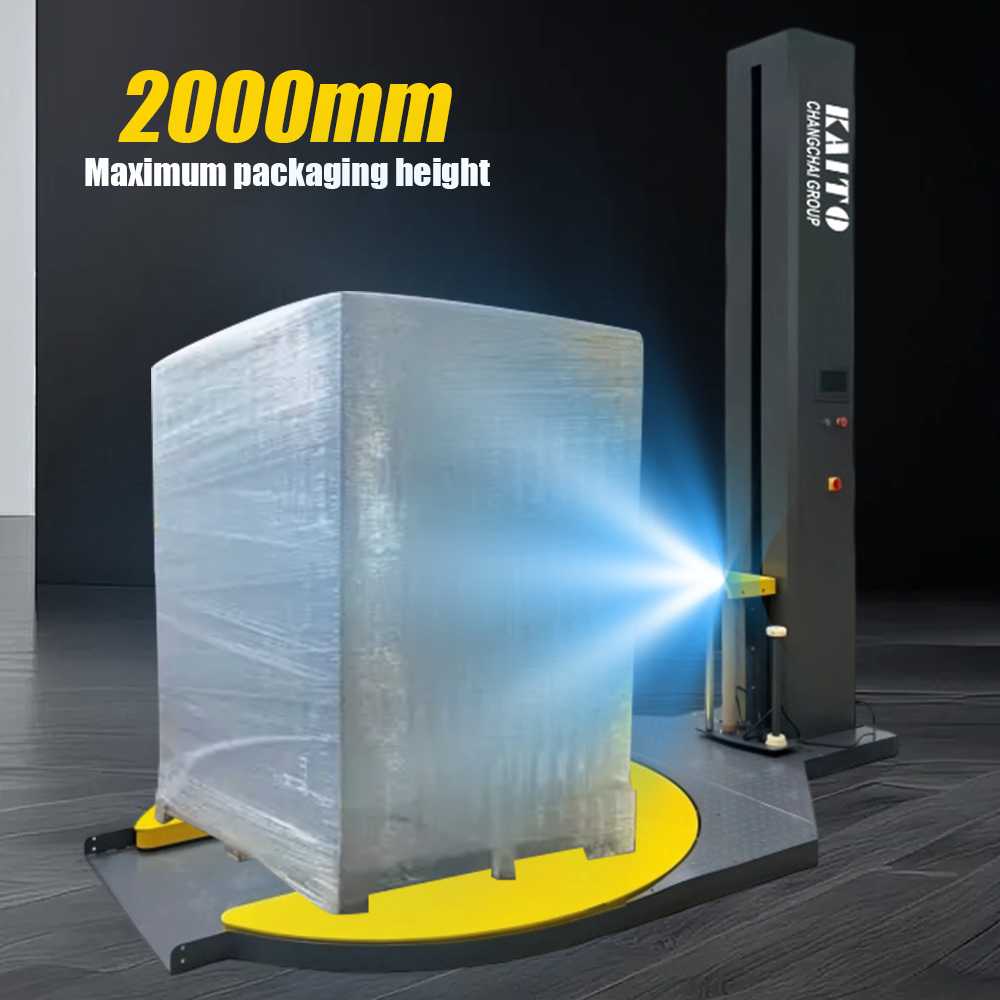

Maximum packaging height
2000mm
Turntable diameter
1800mm

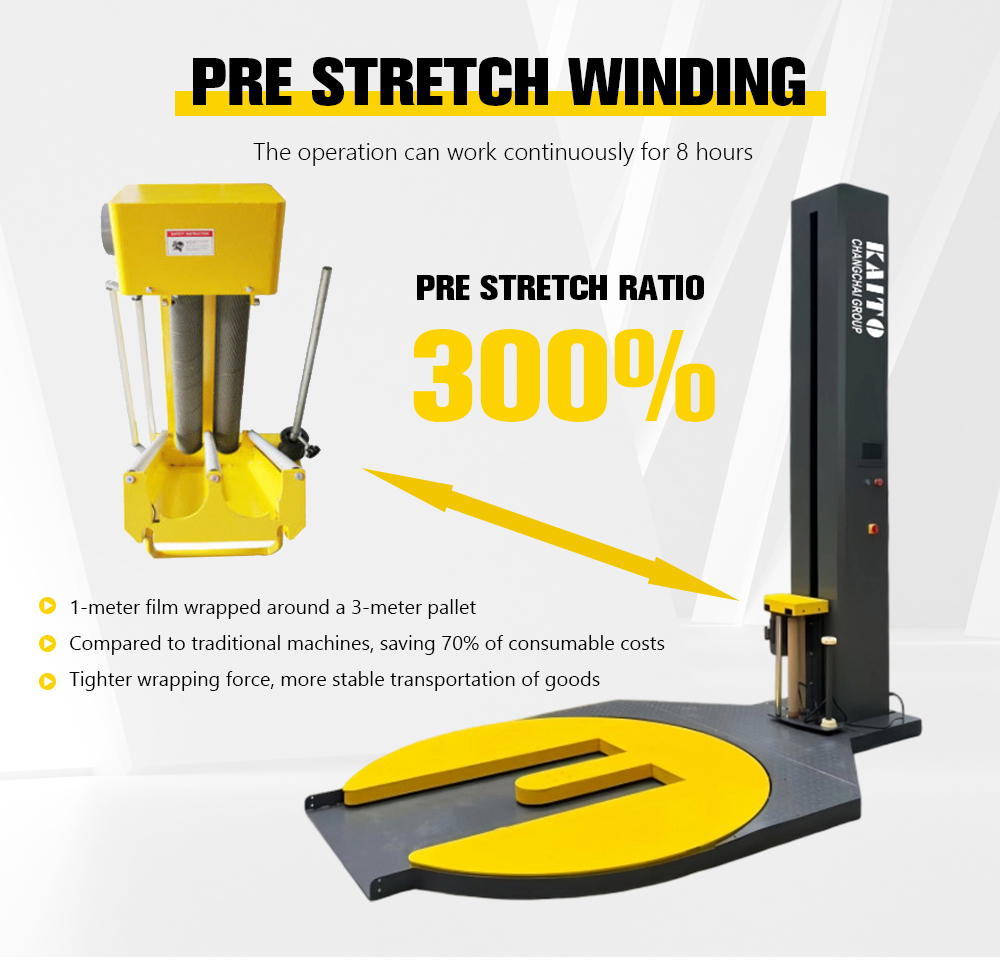

Pre-stretch ratio
300%
Rotary speed
0-12 revolutions/min
Packaging efficiency
20~40 pallets/h
Power supply
Single phase 220VAC, 50Hz
Product Description
Stable and Efficient Output: Delivers a consistent packaging efficiency of 20~40 pallets per hour, with adjustable turntable speed (0-12 rpm) and film carriage lifting speed (0-5 m/min) to meet the stable production needs of small to medium-sized factories.
High Load Capacity and Wide Compatibility: Supports a maximum turntable load of 1000kg and accommodates pallet sizes up to 1650mm in diameter and 2000mm in height, making it fully compatible with most standard palletized goods for versatile use.
Convenient Operation: PLC+ touch screen/buttons Control system, features photoelectric automatic sensing for hands-free operation, paired with a low-profile M type turntable (height <80mm) for easy forklift access. It works with standard stretch film (500mm width, 76mm core), ensuring easy and cost-effective material sourcing.

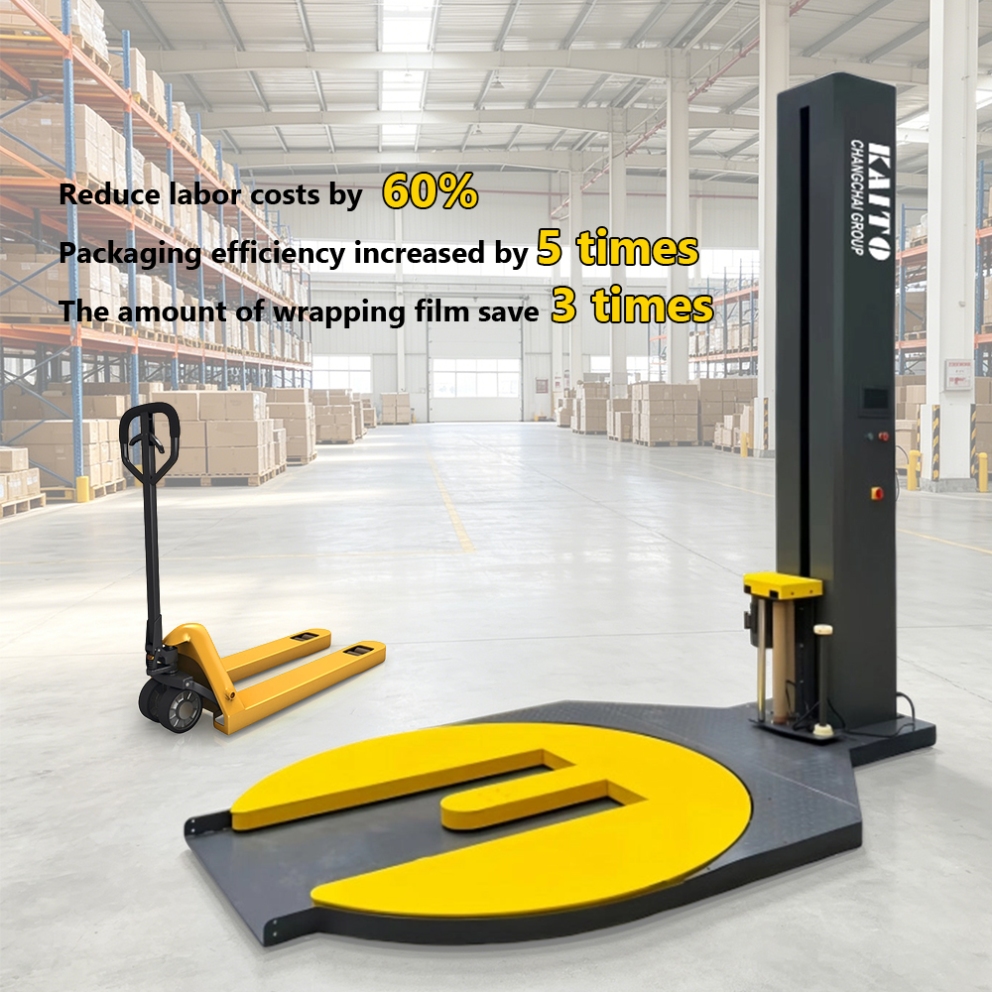

Reliable Power and Low Energy Consumption: Operates on a single-phase 220VAC, 50Hz power supply with a low 1.35kW power rating, eliminating the need for complex three-phase power upgrades and allowing for easy deployment in small workshops or warehouses.
