Automatic Strapping Machine

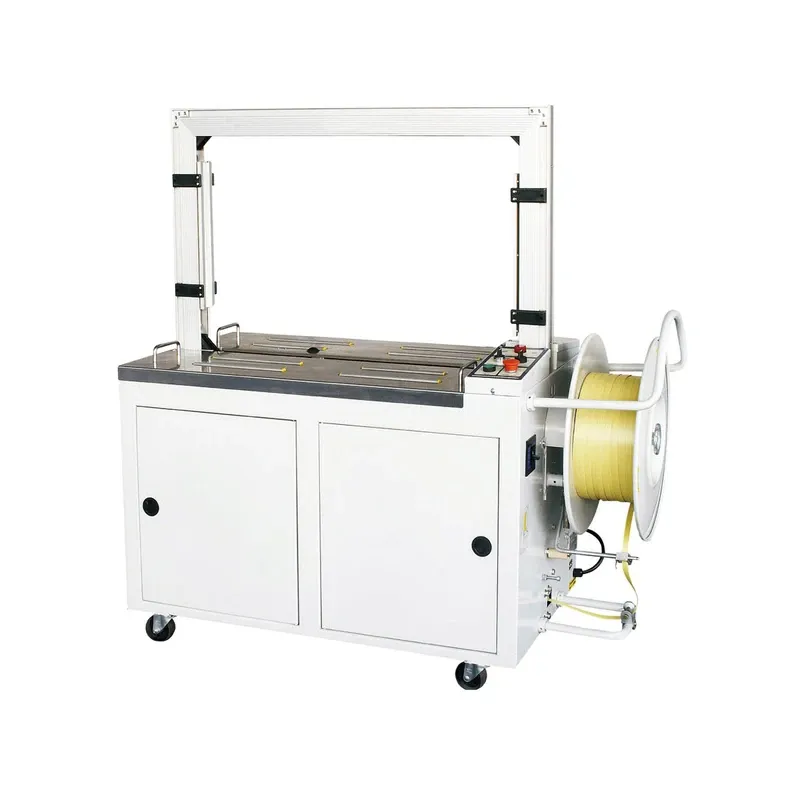

MH-101A Automatic Strapping Machine (Standard Table + High Column)
MH-101A is a fully automatic PP-strap carton strapping machine with a standard work table and high column. It straps up to 2.5 seconds per cycle with an 800×600 mm standard frame (customizable), 750 mm working table height (customizable), and handles PP straps 9–15 mm wide.
Specifications
- Power supply
- 380V 50/60Hz 1.0kW
- Machine dimension (mm)
- 1400*628*1418
- Minimum packing size (mm)
- W100*H80
- Standard frame size (mm)
- W800*H600 (Customized)
- Working table height (mm)
- 750 (Customized)
- Packing speed (sec/cycle)
- ≤ 2.5
- PP strap (mm)
- Width 9-15 (±1), thickness 0.55-1.0 (±0.1)
MH-101A is a fully automatic PP-strap carton strapping machine with a standard work table and a high column. It straps up to 2.5 seconds per cycle on an 800×600 mm standard frame (customizable), with a 750 mm working table height (customizable), and handles PP straps 9–15 mm wide.
Key Features
Fully automatic strapping with ≤ 2.5 seconds per cycle, suitable for continuous carton bundling.
Standard frame W800*H600; frame size, table height and strap specifications can be customized.
Work table height 750 mm, configurable for different production line heights.
Uses PP strapping band 9–15 mm wide, 0.55–1.0 mm thick.
Technical Specifications
Parameter | Specification |
|---|---|
Power supply | 380V 50/60Hz 1.0kW |
Machine dimension (mm) | 1400*628*1418 |
Minimum packing size (mm) | W100*H80 |
Standard frame size (mm) | W800*H600 (Customized) |
Working table height (mm) | 750 (Customized) |
Packing speed (sec/cycle) | ≤ 2.5 |
PP strap (mm) | Width 9-15 (±1), thickness 0.55-1.0 (±0.1) |
Applications
Carton bundling for logistics, warehousing, e-commerce fulfillment, food and beverage, hardware and general manufacturing packaging lines.
OEM / ODM
Customized configurations are available according to customer requirements, including frame size, table height and strap specifications.
