Automatic Strapping Machine

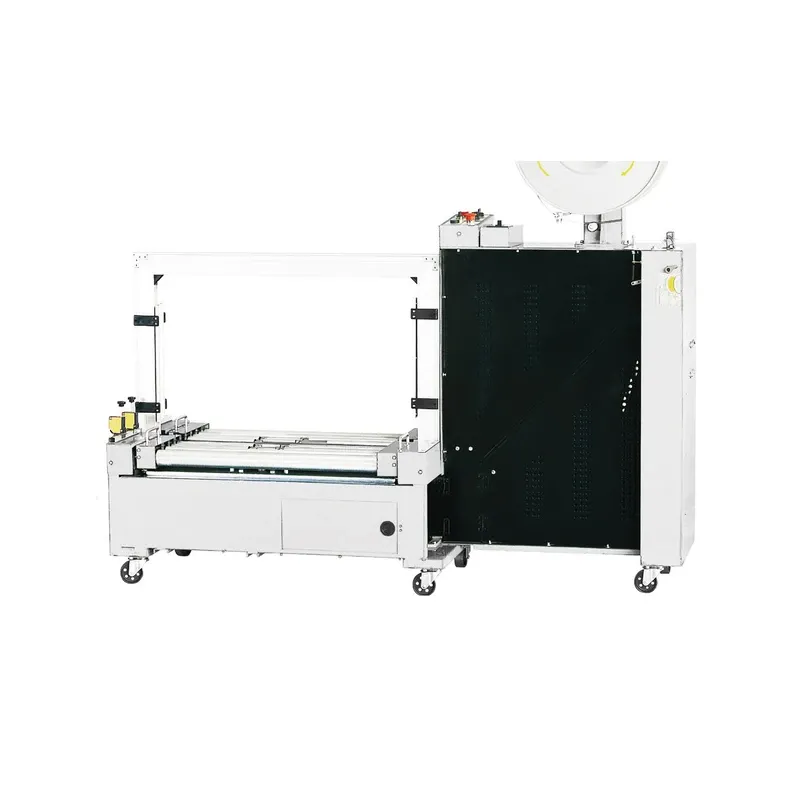

Automatic Strapping Machine MH-102B (standard table + low table)
Automatic Strapping Machine MH-102B (standard table + low table) is a automatic strapping machine in the RDK series. Key specifications: Power supply 380V 50/60Hz 1.4kW; Machine dimension 1905*628*1850; Minimum packing size W100*H80; Standard frame size W800*H600 (Customized). OEM & ODM customization available.
Specifications
- Power supply
- 380V 50/60Hz 1.4kW
- Machine dimension (mm)
- 1905*628*1850
- Minimum packing size (mm)
- W100*H80
- Standard frame size (mm)
- W800*H600 (Customized)
- Working table height (mm)
- 450 (Customized)
- Packing speed (sec/cycle)
- <= 2.5
- PP strap (mm)
- Width 9-15 (±1), thickness 0.55-1.0 (±0.1)
Automatic Strapping Machine MH-102B (standard table + low table) is a automatic strapping machine in the RDK series. Key specifications: Power supply 380V 50/60Hz 1.4kW; Machine dimension 1905*628*1850; Minimum packing size W100*H80; Standard frame size W800*H600 (Customized). OEM & ODM customization available.
Key Features
Power supply: 380V 50/60Hz 1.4kW
Machine dimension (mm): 1905*628*1850
Minimum packing size (mm): W100*H80
Standard frame size (mm): W800*H600 (Customized)
Technical Specifications
Parameter | Specification |
|---|---|
Power supply | 380V 50/60Hz 1.4kW |
Machine dimension (mm) | 1905*628*1850 |
Minimum packing size (mm) | W100*H80 |
Standard frame size (mm) | W800*H600 (Customized) |
Working table height (mm) | 450 (Customized) |
Packing speed (sec/cycle) | <= 2.5 |
PP strap (mm) | Width 9-15 (±1), thickness 0.55-1.0 (±0.1) |
OEM / ODM
Customized configurations are available according to customer requirements, including frame size, table height and strap specifications.
