Automatic Strapping Machine

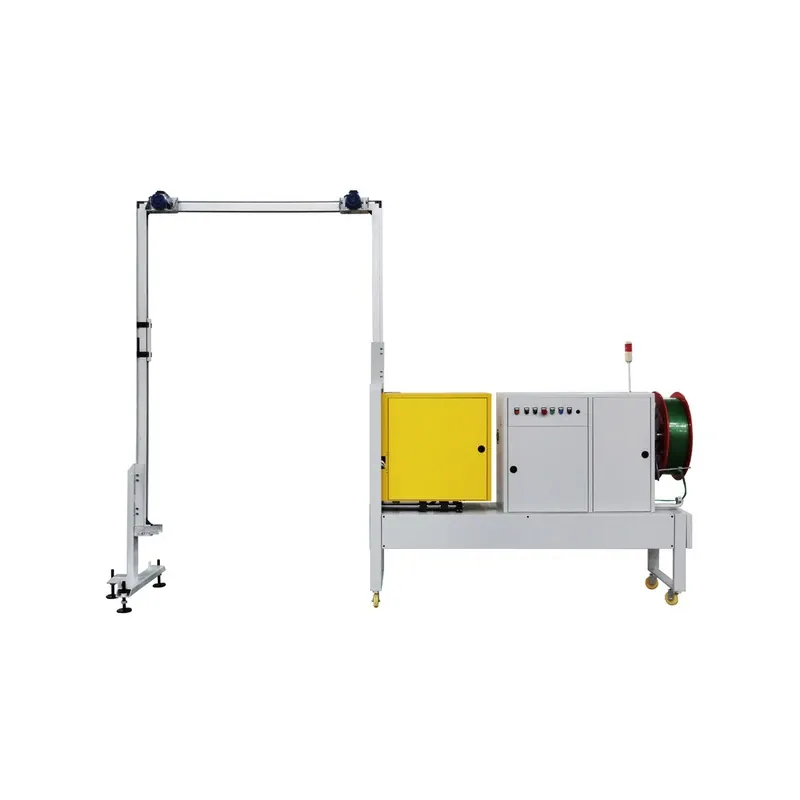

Automatic Vertical Strapping Machine MH-105B
Automatic Vertical Strapping Machine MH-105B is a automatic strapping machine in the RDK series. Key specifications: Power supply 380V 50/60Hz 1.6kW; Air pressure (MPa) 0.4-0.6; Machine dimension 4145*845*2630; Frame size W1500*H2000 (Customized). OEM & ODM customization available.
Specifications
- Power supply
- 380V 50/60Hz 1.6kW
- Air pressure (MPa)
- 0.4-0.6
- Machine dimension (mm)
- 4145*845*2630
- Frame size (mm)
- W1500*H2000 (Customized)
- Packing speed (sec/cycle)
- <= 15
- PP strap (mm)
- Width 9-15 (±1), thickness 0.55-1.0 (±0.1)
- PP strap spool (mm)
- W160-180, inner dia.200-210, outer dia.400-500
Automatic Vertical Strapping Machine MH-105B is a automatic strapping machine in the RDK series. Key specifications: Power supply 380V 50/60Hz 1.6kW; Air pressure (MPa) 0.4-0.6; Machine dimension 4145*845*2630; Frame size W1500*H2000 (Customized). OEM & ODM customization available.
Key Features
Power supply: 380V 50/60Hz 1.6kW
Air pressure (MPa): 0.4-0.6
Machine dimension (mm): 4145*845*2630
Frame size (mm): W1500*H2000 (Customized)
Technical Specifications
Parameter | Specification |
|---|---|
Power supply | 380V 50/60Hz 1.6kW |
Air pressure (MPa) | 0.4-0.6 |
Machine dimension (mm) | 4145*845*2630 |
Frame size (mm) | W1500*H2000 (Customized) |
Packing speed (sec/cycle) | <= 15 |
PP strap (mm) | Width 9-15 (±1), thickness 0.55-1.0 (±0.1) |
PP strap spool (mm) | W160-180, inner dia.200-210, outer dia.400-500 |
OEM / ODM
Customized configurations are available according to customer requirements, including frame size, table height and strap specifications.
