Pallet Stretch Wrapping Machine

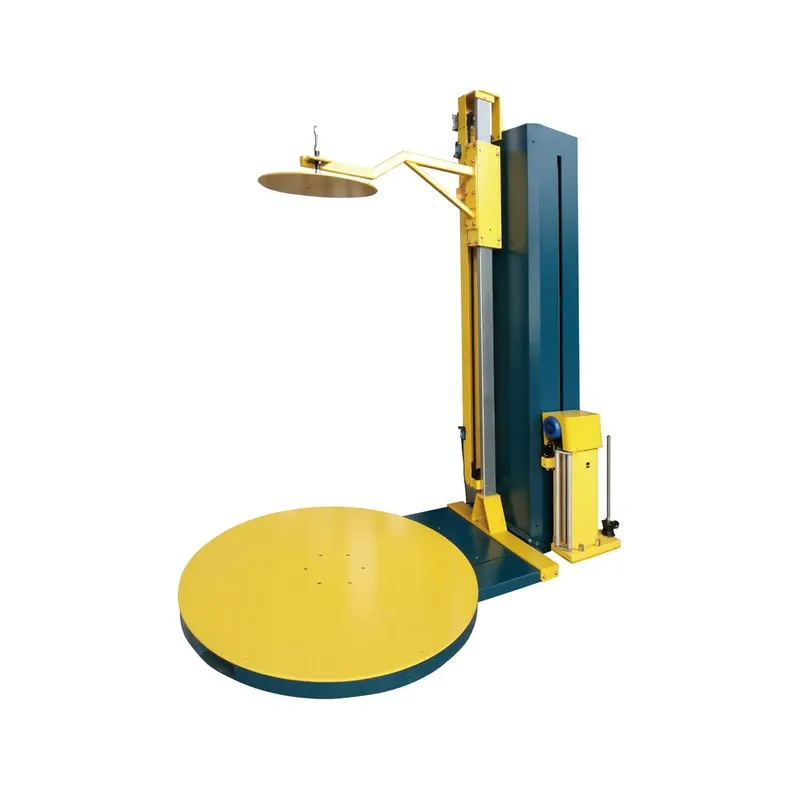

Automatic Pallet Stretch Wrapper with Top Presser MH-FG-2000C1
Automatic Pallet Stretch Wrapper with Top Presser MH-FG-2000C1 is a pallet wrapper in the RDK series. Key specifications: Power 1P AC220V 50Hz; Speed of turntable (rpm) 0-10; Dia. of turntable Φ1500 (optional Φ1650/1800/2000/2200); Dia. of top-presser Φ450 (optional Φ600/800). OEM & ODM customization available.
Specifications
- Power
- 1P AC220V 50Hz
- Speed of turntable (rpm)
- 0-10
- Dia. of turntable (mm)
- Φ1500 (optional Φ1650/1800/2000/2200)
- Dia. of top-presser (mm)
- Φ450 (optional Φ600/800)
- Mast height (mm)
- 2400 (optional 2000/2700/3000/3200/3400)
- Capacity (kg)
- 2000
- Effective height
- Mast height minus 400
- Packaging material (mm)
- W<=500, outer dia.<=Φ280 LLDPE film
- Working height (mm)
- 500 - mast height minus 400
Automatic Pallet Stretch Wrapper with Top Presser MH-FG-2000C1 is a pallet wrapper in the RDK series. Key specifications: Power 1P AC220V 50Hz; Speed of turntable (rpm) 0-10; Dia. of turntable Φ1500 (optional Φ1650/1800/2000/2200); Dia. of top-presser Φ450 (optional Φ600/800). OEM & ODM customization available.
Key Features
Power: 1P AC220V 50Hz
Speed of turntable (rpm): 0-10
Dia. of turntable (mm): Φ1500 (optional Φ1650/1800/2000/2200)
Dia. of top-presser (mm): Φ450 (optional Φ600/800)
Technical Specifications
Parameter | Specification |
|---|---|
Power | 1P AC220V 50Hz |
Speed of turntable (rpm) | 0-10 |
Dia. of turntable (mm) | Φ1500 (optional Φ1650/1800/2000/2200) |
Dia. of top-presser (mm) | Φ450 (optional Φ600/800) |
Mast height (mm) | 2400 (optional 2000/2700/3000/3200/3400) |
Capacity (kg) | 2000 |
Effective height | Mast height minus 400 |
Packaging material (mm) | W<=500, outer dia.<=Φ280 LLDPE film |
Working height (mm) | 500 - mast height minus 400 |
OEM / ODM
Customized configurations are available according to customer requirements, including frame size, table height and strap specifications.
