Pallet Stretch Wrapping Machine

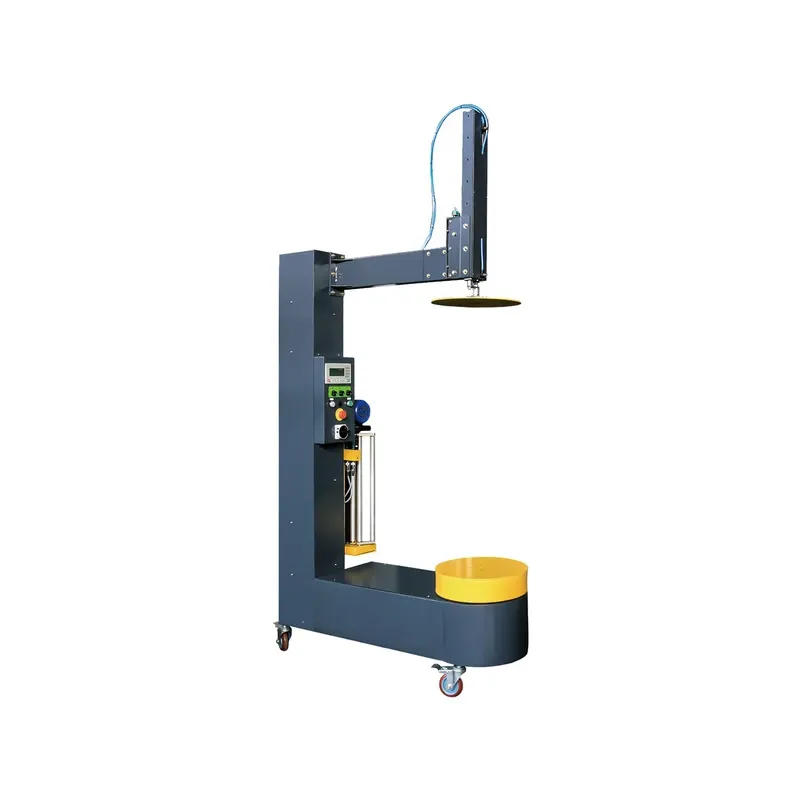

Pallet Stretch Wrapper MH-FG-800B (small, top presser)
Pallet Stretch Wrapper MH-FG-800B (small, top presser) is a pallet wrapper in the RDK series. Key specifications: Power 1P AC220V 50Hz; Air pressure (MPa) 0.4-0.6; Speed of turntable (rpm) 0-20; Dia. of turntable Φ400, Φ600. OEM & ODM customization available.
Specifications
- Power
- 1P AC220V 50Hz
- Air pressure (MPa)
- 0.4-0.6
- Speed of turntable (rpm)
- 0-20
- Dia. of turntable (mm)
- Φ400, Φ600
- Air cylinder (mm)
- 500
- Capacity (kg)
- 60
- Packaging material (mm)
- W<=500, outer dia.<=Φ280 LLDPE film
- Noise
- <= 75dB (A)
- Environment
- Humidity <= 90%, temperature -10 to 40 °C
Pallet Stretch Wrapper MH-FG-800B (small, top presser) is a pallet wrapper in the RDK series. Key specifications: Power 1P AC220V 50Hz; Air pressure (MPa) 0.4-0.6; Speed of turntable (rpm) 0-20; Dia. of turntable Φ400, Φ600. OEM & ODM customization available.
Key Features
Power: 1P AC220V 50Hz
Air pressure (MPa): 0.4-0.6
Speed of turntable (rpm): 0-20
Dia. of turntable (mm): Φ400, Φ600
Technical Specifications
Parameter | Specification |
|---|---|
Power | 1P AC220V 50Hz |
Air pressure (MPa) | 0.4-0.6 |
Speed of turntable (rpm) | 0-20 |
Dia. of turntable (mm) | Φ400, Φ600 |
Air cylinder (mm) | 500 |
Capacity (kg) | 60 |
Packaging material (mm) | W<=500, outer dia.<=Φ280 LLDPE film |
Noise | <= 75dB (A) |
Environment | Humidity <= 90%, temperature -10 to 40 °C |
OEM / ODM
Customized configurations are available according to customer requirements, including frame size, table height and strap specifications.
