Carton Sealing Machine

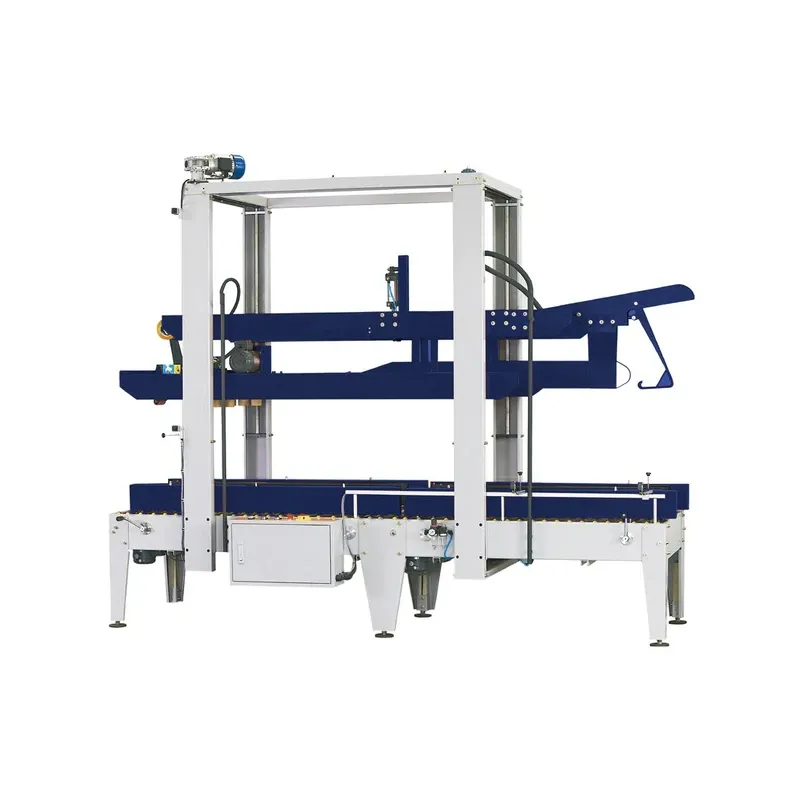

Automatic Carton Sealer MH-FJ-3D
Automatic Carton Sealer MH-FJ-3D is a carton sealer in the RDK series. Key specifications: Power supply AC380V 50Hz 1.37kW; Air pressure (MPa) 0.4-0.6; Sealing mode Kraft paper tape, BOPP tape; Tape width 48-72. OEM & ODM customization available.
Specifications
- Power supply
- AC380V 50Hz 1.37kW
- Air pressure (MPa)
- 0.4-0.6
- Sealing mode
- Kraft paper tape, BOPP tape
- Tape width (mm)
- 48-72
- Carton size (mm)
- L300-1400, W180-480, H160-480 (Customized)
- Speed (m/min)
- 22
- Table height (mm)
- 550-750 (foot cup) / 630-820 (caster wheel)
- Overall dimension (mm)
- 2500*990*H (table height plus 1100)
Automatic Carton Sealer MH-FJ-3D is a carton sealer in the RDK series. Key specifications: Power supply AC380V 50Hz 1.37kW; Air pressure (MPa) 0.4-0.6; Sealing mode Kraft paper tape, BOPP tape; Tape width 48-72. OEM & ODM customization available.
Key Features
Power supply: AC380V 50Hz 1.37kW
Air pressure (MPa): 0.4-0.6
Sealing mode: Kraft paper tape, BOPP tape
Tape width (mm): 48-72
Technical Specifications
Parameter | Specification |
|---|---|
Power supply | AC380V 50Hz 1.37kW |
Air pressure (MPa) | 0.4-0.6 |
Sealing mode | Kraft paper tape, BOPP tape |
Tape width (mm) | 48-72 |
Carton size (mm) | L300-1400, W180-480, H160-480 (Customized) |
Speed (m/min) | 22 |
Table height (mm) | 550-750 (foot cup) / 630-820 (caster wheel) |
Overall dimension (mm) | 2500*990*H (table height plus 1100) |
OEM / ODM
Customized configurations are available according to customer requirements, including frame size, table height and strap specifications.
