Automatic Strapping Machine

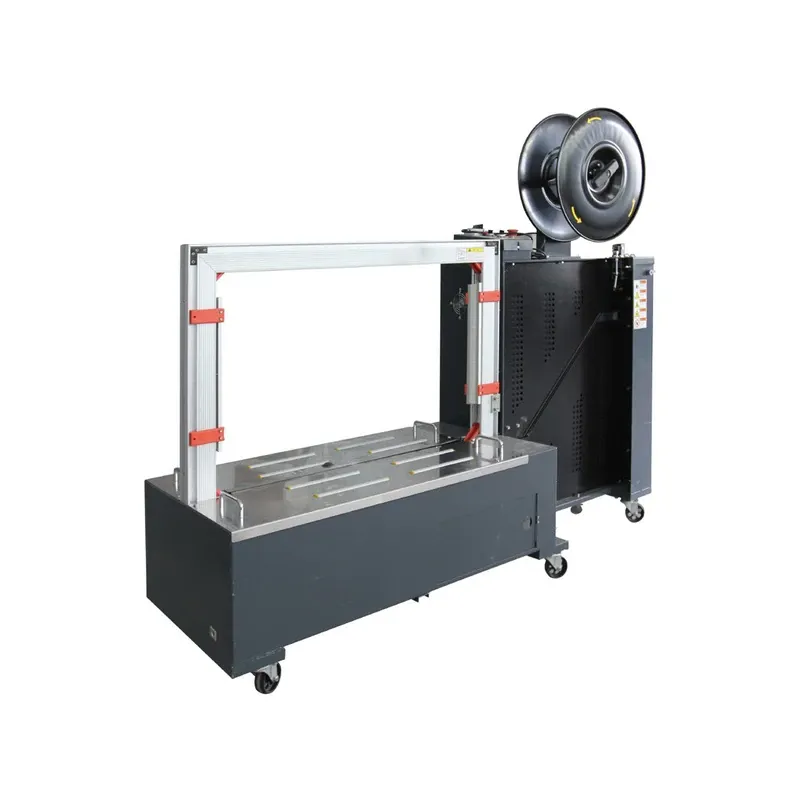

Automatic Strapping Machine MH-X201B (standard table, low table)
Automatic Strapping Machine MH-X201B (standard table, low table) is a automatic strapping machine in the RDK series. Key specifications: Power supply 220V 50/60Hz 0.4kW; Machine dimension 1400*628*1435; Minimum packing size W80*H60; Standard frame size W800*H600 (Customized). OEM & ODM customization available.
Specifications
- Power supply
- 220V 50/60Hz 0.4kW
- Machine dimension (mm)
- 1400*628*1435
- Minimum packing size (mm)
- W80*H60
- Standard frame size (mm)
- W800*H600 (Customized)
- Working table height (mm)
- 750 (Customized)
- Packing speed (sec/cycle)
- <= 2.5
- PP strap (mm)
- Width 9-15 (±1), thickness 0.55-1.0 (±0.1)
Automatic Strapping Machine MH-X201B (standard table, low table) is a automatic strapping machine in the RDK series. Key specifications: Power supply 220V 50/60Hz 0.4kW; Machine dimension 1400*628*1435; Minimum packing size W80*H60; Standard frame size W800*H600 (Customized). OEM & ODM customization available.
Key Features
Power supply: 220V 50/60Hz 0.4kW
Machine dimension (mm): 1400*628*1435
Minimum packing size (mm): W80*H60
Standard frame size (mm): W800*H600 (Customized)
Technical Specifications
Parameter | Specification |
|---|---|
Power supply | 220V 50/60Hz 0.4kW |
Machine dimension (mm) | 1400*628*1435 |
Minimum packing size (mm) | W80*H60 |
Standard frame size (mm) | W800*H600 (Customized) |
Working table height (mm) | 750 (Customized) |
Packing speed (sec/cycle) | <= 2.5 |
PP strap (mm) | Width 9-15 (±1), thickness 0.55-1.0 (±0.1) |
OEM / ODM
Customized configurations are available according to customer requirements, including frame size, table height and strap specifications.
