Automatic Strapping Machine

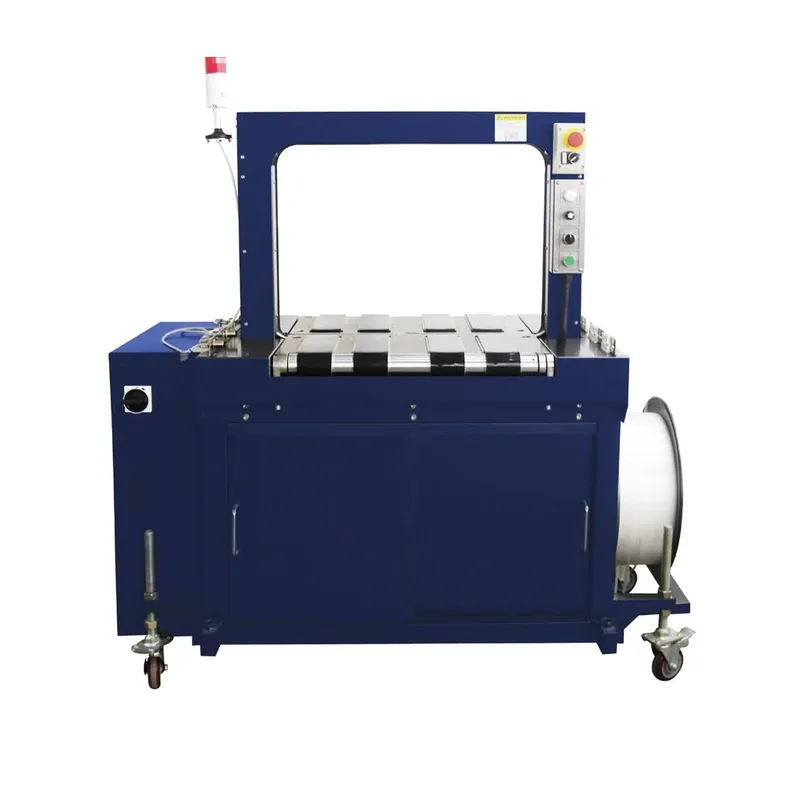

Automatic Strapping Machine YS-305B (table with belt)
Automatic Strapping Machine YS-305B (table with belt) is a automatic strapping machine in the RDK series. Key specifications: Power supply 220V 50/60Hz 1.0kW; Machine dimension L1480*W730*H1480; Minimum packing size W150*H60; Standard frame size W650*H500 (Customized). OEM & ODM customization available.
Specifications
- Power supply
- 220V 50/60Hz 1.0kW
- Machine dimension (mm)
- L1480*W730*H1480
- Minimum packing size (mm)
- W150*H60
- Standard frame size (mm)
- W650*H500 (Customized)
- Working table height (mm)
- 850 (Customized)
- Packing speed (sec/cycle)
- <= 40
- PP strap (mm)
- Width 5/6, thickness 0.5-0.8
Automatic Strapping Machine YS-305B (table with belt) is a automatic strapping machine in the RDK series. Key specifications: Power supply 220V 50/60Hz 1.0kW; Machine dimension L1480*W730*H1480; Minimum packing size W150*H60; Standard frame size W650*H500 (Customized). OEM & ODM customization available.
Key Features
Power supply: 220V 50/60Hz 1.0kW
Machine dimension (mm): L1480*W730*H1480
Minimum packing size (mm): W150*H60
Standard frame size (mm): W650*H500 (Customized)
Technical Specifications
Parameter | Specification |
|---|---|
Power supply | 220V 50/60Hz 1.0kW |
Machine dimension (mm) | L1480*W730*H1480 |
Minimum packing size (mm) | W150*H60 |
Standard frame size (mm) | W650*H500 (Customized) |
Working table height (mm) | 850 (Customized) |
Packing speed (sec/cycle) | <= 40 |
PP strap (mm) | Width 5/6, thickness 0.5-0.8 |
OEM / ODM
Customized configurations are available according to customer requirements, including frame size, table height and strap specifications.
