Automatic Strapping Machine

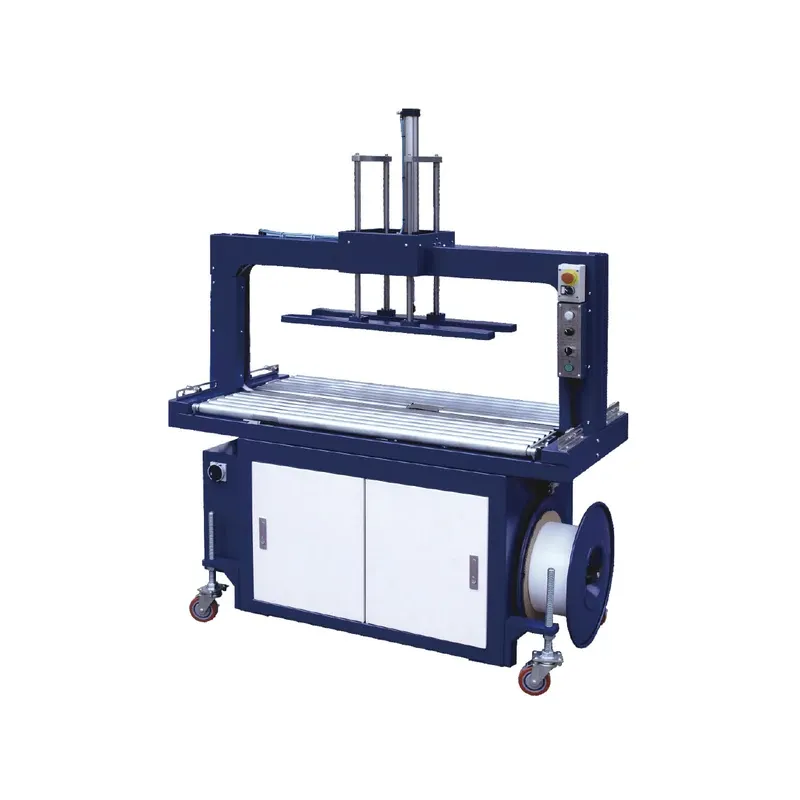

Automatic Strapping Machine YS-305RP (roller table, with presser)
Automatic Strapping Machine YS-305RP (roller table, with presser) is a automatic strapping machine in the RDK series. Key specifications: Power supply 220V 50/60Hz 1.0kW; Air pressure (MPa) 0.4-0.6; Machine dimension 1520*680*2000; Minimum packing size W200*H60. OEM & ODM customization available.
Specifications
- Power supply
- 220V 50/60Hz 1.0kW
- Air pressure (MPa)
- 0.4-0.6
- Machine dimension (mm)
- 1520*680*2000
- Minimum packing size (mm)
- W200*H60
- Standard frame size (mm)
- W1250*H500 (Customized)
- Working table height (mm)
- 850 (Customized)
- Packing speed (cycles/min)
- <= 25
- PP strap (mm)
- Width 5/6, thickness 0.5-0.8
Automatic Strapping Machine YS-305RP (roller table, with presser) is a automatic strapping machine in the RDK series. Key specifications: Power supply 220V 50/60Hz 1.0kW; Air pressure (MPa) 0.4-0.6; Machine dimension 1520*680*2000; Minimum packing size W200*H60. OEM & ODM customization available.
Key Features
Power supply: 220V 50/60Hz 1.0kW
Air pressure (MPa): 0.4-0.6
Machine dimension (mm): 1520*680*2000
Minimum packing size (mm): W200*H60
Technical Specifications
Parameter | Specification |
|---|---|
Power supply | 220V 50/60Hz 1.0kW |
Air pressure (MPa) | 0.4-0.6 |
Machine dimension (mm) | 1520*680*2000 |
Minimum packing size (mm) | W200*H60 |
Standard frame size (mm) | W1250*H500 (Customized) |
Working table height (mm) | 850 (Customized) |
Packing speed (cycles/min) | <= 25 |
PP strap (mm) | Width 5/6, thickness 0.5-0.8 |
OEM / ODM
Customized configurations are available according to customer requirements, including frame size, table height and strap specifications.
