Shrink Wrapping Machine

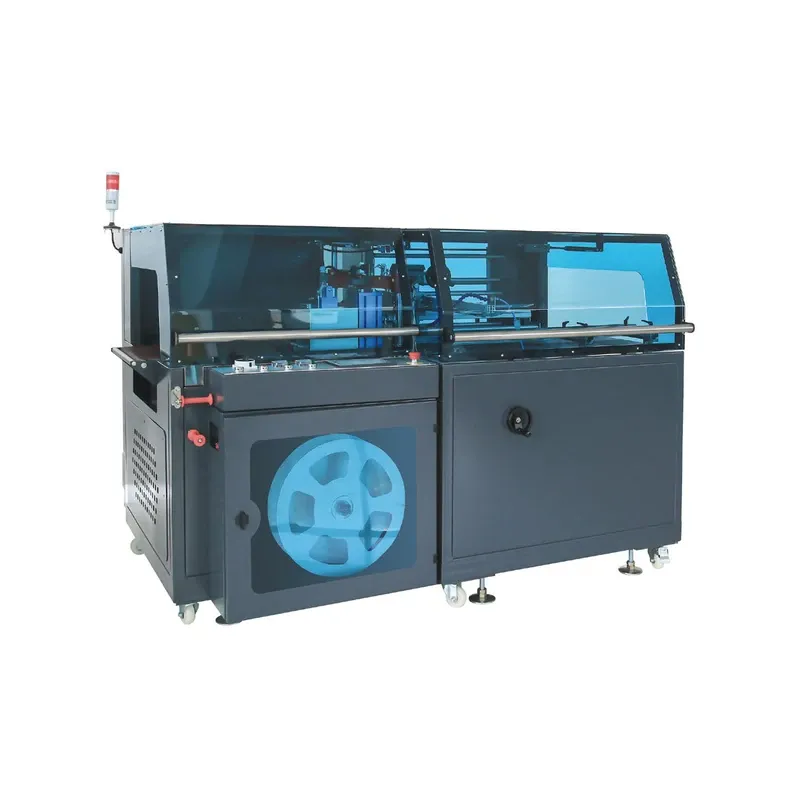

Automatic Shrink Wrapping Machine YS-ZB-5B
Automatic Shrink Wrapping Machine YS-ZB-5B is a shrink wrapping machine in the RDK series. Key specifications: Power 3P AC380V 50Hz 3.7kW; Air pressure (MPa) 0.6-0.8; Working table height 850; Speed (pcs/min) 1-55. OEM & ODM customization available.
Specifications
- Power
- 3P AC380V 50Hz 3.7kW
- Air pressure (MPa)
- 0.6-0.8
- Working table height (mm)
- 850
- Speed (pcs/min)
- 1-55
- Max sealing size (mm)
- W<380 (Customized), L(oo)
- Max packing size (mm)
- W+H<420 and H<150
- Film size (mm)
- Φ280*W550
- Machine dimension (mm)
- 2080*1500*1300
Automatic Shrink Wrapping Machine YS-ZB-5B is a shrink wrapping machine in the RDK series. Key specifications: Power 3P AC380V 50Hz 3.7kW; Air pressure (MPa) 0.6-0.8; Working table height 850; Speed (pcs/min) 1-55. OEM & ODM customization available.
Key Features
Power: 3P AC380V 50Hz 3.7kW
Air pressure (MPa): 0.6-0.8
Working table height (mm): 850
Speed (pcs/min): 1-55
Technical Specifications
Parameter | Specification |
|---|---|
Power | 3P AC380V 50Hz 3.7kW |
Air pressure (MPa) | 0.6-0.8 |
Working table height (mm) | 850 |
Speed (pcs/min) | 1-55 |
Max sealing size (mm) | W<380 (Customized), L(oo) |
Max packing size (mm) | W+H<420 and H<150 |
Film size (mm) | Φ280*W550 |
Machine dimension (mm) | 2080*1500*1300 |
OEM / ODM
Customized configurations are available according to customer requirements, including frame size, table height and strap specifications.
