Labeling Machine

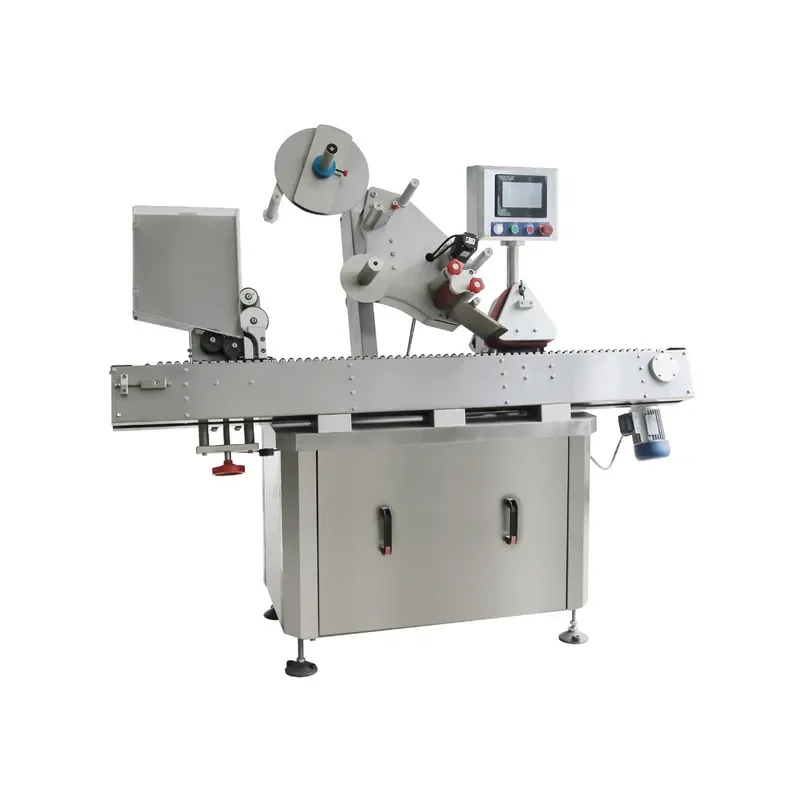

Automatic Labeling Machine YTB-AC2000
Automatic Labeling Machine YTB-AC2000 is a labeling machine in the RDK series. Key specifications: Power supply AC220V 50Hz 0.83kW; Air pressure (MPa) 0.2-0.5; Applicable container range Φ10-20, H(25-95) (Customized); Label range L(25-75)*H(25-75) (Customized). OEM & ODM customization available.
Specifications
- Power supply
- AC220V 50Hz 0.83kW
- Air pressure (MPa)
- 0.2-0.5
- Applicable container range (mm)
- Φ10-20, H(25-95) (Customized)
- Label range (mm)
- L(25-75)*H(25-75) (Customized)
- Label scroll (mm)
- Inner dia. Φ76, outer dia. Φ280
- Direction of label scroll
- Clockwise
- Labeling speed (pcs/min)
- 0-150 (servo motor; depends on label length)
- Labeling precision (mm)
- ±0.5
- Table height (mm)
- 900
- Machine dimension (mm)
- 1830*700*1650
- Machine weight (kg)
- 250
Automatic Labeling Machine YTB-AC2000 is a labeling machine in the RDK series. Key specifications: Power supply AC220V 50Hz 0.83kW; Air pressure (MPa) 0.2-0.5; Applicable container range Φ10-20, H(25-95) (Customized); Label range L(25-75)*H(25-75) (Customized). OEM & ODM customization available.
Key Features
Power supply: AC220V 50Hz 0.83kW
Air pressure (MPa): 0.2-0.5
Applicable container range (mm): Φ10-20, H(25-95) (Customized)
Label range (mm): L(25-75)*H(25-75) (Customized)
Technical Specifications
Parameter | Specification |
|---|---|
Power supply | AC220V 50Hz 0.83kW |
Air pressure (MPa) | 0.2-0.5 |
Applicable container range (mm) | Φ10-20, H(25-95) (Customized) |
Label range (mm) | L(25-75)*H(25-75) (Customized) |
Label scroll (mm) | Inner dia. Φ76, outer dia. Φ280 |
Direction of label scroll | Clockwise |
Labeling speed (pcs/min) | 0-150 (servo motor; depends on label length) |
Labeling precision (mm) | ±0.5 |
Table height (mm) | 900 |
Machine dimension (mm) | 1830*700*1650 |
Machine weight (kg) | 250 |
OEM / ODM
Customized configurations are available according to customer requirements, including frame size, table height and strap specifications.
