Labeling Machine

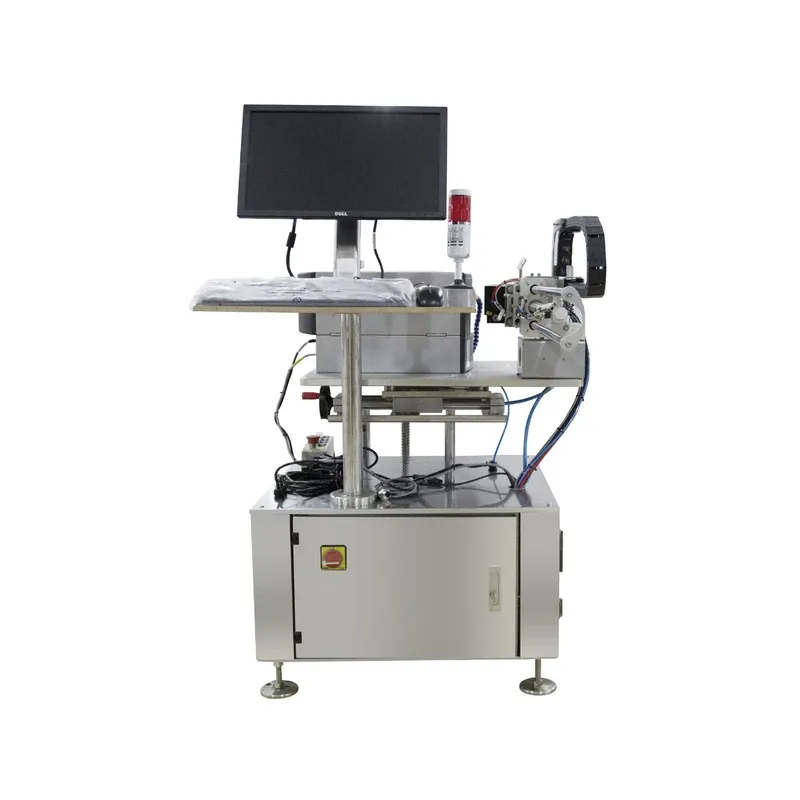

Instant Printing Labeling Machine YTB-DC2000
Instant Printing Labeling Machine YTB-DC2000 is a labeling machine in the RDK series. Key specifications: Power supply AC220V 50Hz 0.5kW; Air pressure (MPa) 0.5-0.8; Applicable labeling object Cuboid object (Customized); Label range L(50-150)*H(40-120) (Customized). OEM & ODM customization available.
Specifications
- Power supply
- AC220V 50Hz 0.5kW
- Air pressure (MPa)
- 0.5-0.8
- Applicable labeling object
- Cuboid object (Customized)
- Label range (mm)
- L(50-150)*H(40-120) (Customized)
- Label scroll (mm)
- Inner dia. Φ76, outer dia. Φ200
- Labeling speed (pcs/min)
- 0-15
- Labeling precision (mm)
- ±3
- Table height (mm)
- 700±50 (Customized)
- Machine dimension (mm)
- 1000*800*1450
- Machine weight (kg)
- 200
Instant Printing Labeling Machine YTB-DC2000 is a labeling machine in the RDK series. Key specifications: Power supply AC220V 50Hz 0.5kW; Air pressure (MPa) 0.5-0.8; Applicable labeling object Cuboid object (Customized); Label range L(50-150)*H(40-120) (Customized). OEM & ODM customization available.
Key Features
Power supply: AC220V 50Hz 0.5kW
Air pressure (MPa): 0.5-0.8
Applicable labeling object: Cuboid object (Customized)
Label range (mm): L(50-150)*H(40-120) (Customized)
Technical Specifications
Parameter | Specification |
|---|---|
Power supply | AC220V 50Hz 0.5kW |
Air pressure (MPa) | 0.5-0.8 |
Applicable labeling object | Cuboid object (Customized) |
Label range (mm) | L(50-150)*H(40-120) (Customized) |
Label scroll (mm) | Inner dia. Φ76, outer dia. Φ200 |
Labeling speed (pcs/min) | 0-15 |
Labeling precision (mm) | ±3 |
Table height (mm) | 700±50 (Customized) |
Machine dimension (mm) | 1000*800*1450 |
Machine weight (kg) | 200 |
OEM / ODM
Customized configurations are available according to customer requirements, including frame size, table height and strap specifications.
